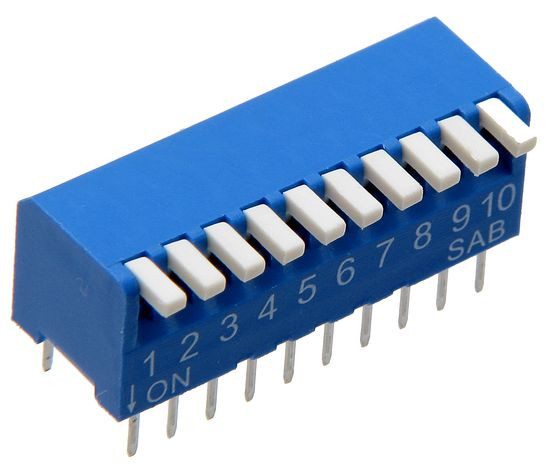

BP10GB SAB Dip-switch

Symbol Micros: PRZ Dip10pr

17243

PRZ Dip10pr

Contractor Symbol:

Case : Rys.dwsDIP10p

Datasheet

Technical drawing Add to favourites

10 contacts; THT; blue color; gold plating 1u"; height: 9.50mm; type: piano eqiv. APEM DP, ITT BP, CTS Elec. 194/195, DIPTRONICS DP, ECE EPA, Resonswitch RP

Parameters

Overall length:	26,40mm
Manufacturer:	SAB
Number of sections:	10
Colour:	Blue
Mechanical durability:	5000 cycles
Type of slider:	Piano
Mounting:	THT

All parameters

Manufacturer:: SAB Manufacturer part number: BP10GB RoHS Case style: Rys.dwsDIP10p

In stock:

170 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9708	0,6449	0,5339	0,4831	0,4623

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/980 Quantity (multiple: 1)

- +

• Parameters

Overall length:	26,40mm
Manufacturer:	SAB
Number of sections:	10
Colour:	Blue
Mechanical durability:	5000 cycles
Type of slider:	Piano
Mounting:	THT
Terminal pitch [m]:	2,54mm
