DIH08G01 SAB

Symbol Micros: PRZ DipIC08

1313

PRZ DipIC08

Contractor Symbol:

Case : Rys.dswIC8

Datasheet

Technical drawing Add to favourites

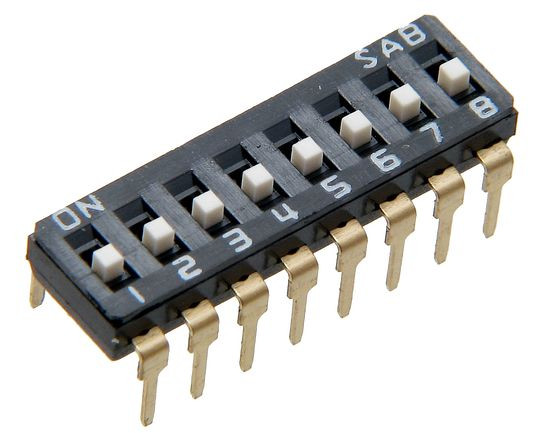

dip-switch IC type, quality, 8 contacts, gold plating 3u", DIL enclosure black colour, height 3.60mm + knob 0.6mm

Parameters

Overall length:	20,76mm
Manufacturer:	SAB
Number of sections:	8
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	THT

All parameters

Manufacturer:: SAB Manufacturer part number: DIH08G01 RoHS Case style: Rys.dswIC8 Datasheet

In stock:

1585 pcs.

Quantity of pcs.	1+	5+	25+	100+	500+
Net price (EUR)	1,0980	0,7305	0,5912	0,5456	0,5228

Add to comparison tool Add inquiry (RFQ)

Packaging:
25/2000 Quantity (multiple: 1)

- +

• Parameters

Overall length:	20,76mm
Manufacturer:	SAB
Number of sections:	8
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	THT
Terminal pitch [mm]:	2,54mm
