DHN-08F-T-V-T/R DIPTRONICS

Symbol Micros: PRZ DipICds08

37208

PRZ DipICds08

Contractor Symbol:

Case : Rys.dswICds8

Datasheet

Add to favourites

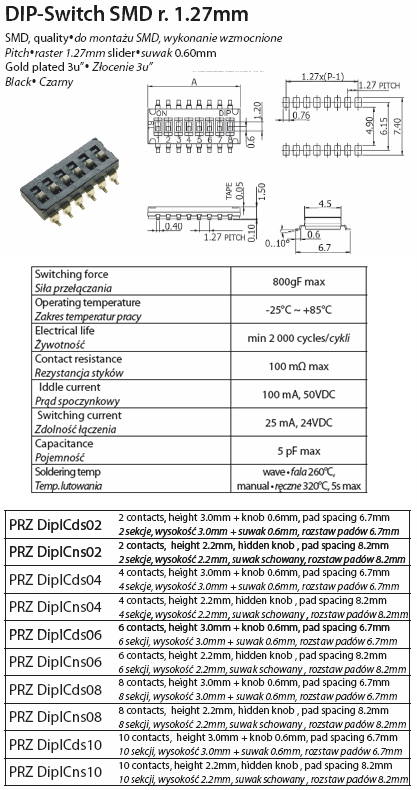

dip-switch IC type, 8 contacts, SMD montage quality p. 1.27mm black colour, pad spacing 6.7mm, gold plating 3u", height 3.0mm + knob 0.6mm

Parameters

Number of sections:	8
Manufacturer:	DIPTRONICS
Colour:	Black
Mechanical durability:	1000 cycles
Type of slider:	Flat
Mounting:	SMD
Terminal pitch [m]:	1,27mm

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Number of sections:	8
Manufacturer:	DIPTRONICS
Colour:	Black
Mechanical durability:	1000 cycles
Type of slider:	Flat
Mounting:	SMD
Terminal pitch [m]:	1,27mm
