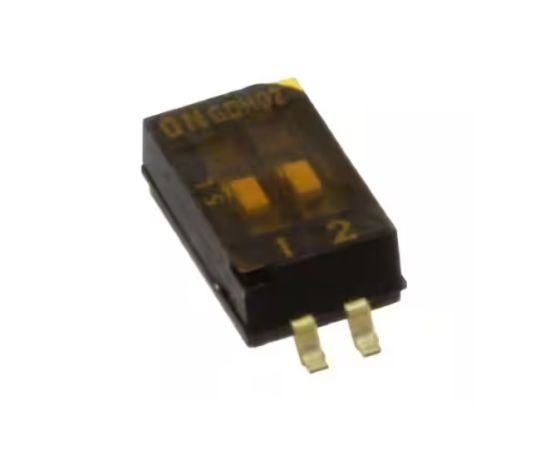

1571983-3  dip-switch IC type, 2 contacts, SMD montage p. 1.27mm

Symbol Micros: PRZ DipICns02-TE

170558

PRZ DipICns02-TE

Contractor Symbol:

Case : Rys.dswICns2-TE

Datasheet

Technical drawing Add to favourites

black colour, pad spacing 8.2mm, height 2.2mm, hidden knob

Parameters

Overall length:	3,67mm
Number of sections:	2
Manufacturer:	TE Connectivity
Mechanical durability:	1000 cycles
Colour:	Black
Mounting:	SMD

All parameters

Manufacturer:: ALCOSWITCH-TE Manufacturer part number: 1571983-1 RoHS Case style: Rys.dswICns2-TE

In stock:

98 pcs.

Quantity of pcs.	1+	5+	30+	125+	250+
Net price (EUR)	1,7583	1,3936	1,2346	1,1855	1,1714

Add to comparison tool Add inquiry (RFQ)

Packaging:
125 Quantity (multiple: 1)

- +

Manufacturer:: TE CONNECTIVITY Manufacturer part number: 1571983-3 Case style: Rys.dswICns2-TE

External warehouse:

6000 pcs.

Quantity of pcs.	2000+ (Please wait for the order confirmation)
Net price (EUR)	1,1714

Add to comparison tool Add inquiry (RFQ)

Packaging:
2000

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Overall length:	3,67mm
Number of sections:	2
Manufacturer:	TE Connectivity
Mechanical durability:	1000 cycles
Colour:	Black
Mounting:	SMD
