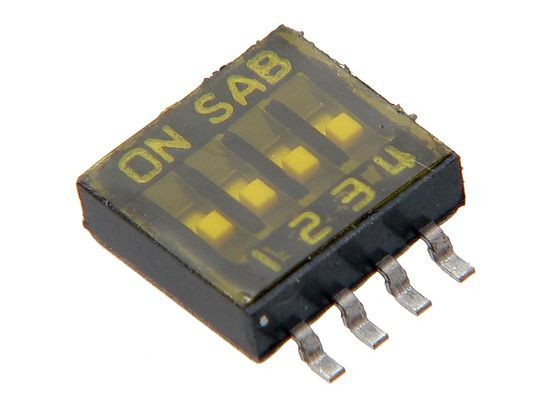

SOP04E SAB Dip-switch

Symbol Micros: PRZ DipICns04

37205

PRZ DipICns04

Contractor Symbol:

Case : Rys.dswICns4

Datasheet

Add to favourites

4 contacts; SMD; pitch: 1.27mm; black color, pad spacing: 8.2mm; gold plating 3u"; height 2.2mm; hidden knob: type: IC; eqiv.Tyco Alco GDH,APEM IKH,ITT CK TDA,CTS 218,DIP FHDS,ECE EHS,KE DSHP,RS HRM

Parameters

Overall length:	6,12mm
Number of sections:	4
Manufacturer:	SAB
Colour:	Black
Mechanical durability:	2000 cycles
Type of slider:	Flat
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Overall length:	6,12mm
Number of sections:	4
Manufacturer:	SAB
Colour:	Black
Mechanical durability:	2000 cycles
Type of slider:	Flat
Mounting:	SMD
Terminal pitch [m]:	1,27mm
