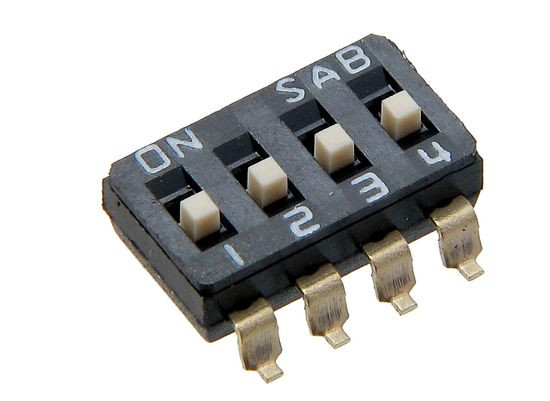

DIS04G01 SAB Dip-switch

Symbol Micros: PRZ DipICs04

16804

PRZ DipICs04

Contractor Symbol:

Case : Rys.dswICs4

Datasheet

Technical drawing Add to favourites

4 contacts, SMD; pitch: 2,54mm; black colour; pad spacing 9.8mm; gold plating 3u"; height 3.20mm + knob 0.7mm eqiv. APEM IKD, ITT CK SDA, CTS 219, DIP DM, ECE EAD, KE DSIC, RS RM

Parameters

Overall length:	10,60mm
Number of sections:	4
Manufacturer:	SAB
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS04G01-R RoHS Case style: Rys.dswICs4

In stock:

480 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0822	0,7207	0,5954	0,5364	0,5151

Add to comparison tool Add inquiry (RFQ)

Packaging:
800 Quantity (multiple: 1)

- +

Manufacturer:: DIPTRONICS Manufacturer part number: DM-04-V-T/R Case style: Rys.dswICs4

External warehouse:

11900 pcs.

Quantity of pcs.	700+ (Please wait for the order confirmation)
Net price (EUR)	0,5151

Add to comparison tool Add inquiry (RFQ)

Packaging:
700

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Overall length:	10,60mm
Number of sections:	4
Manufacturer:	SAB
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	SMD
Terminal pitch [m]:	2,54mm
