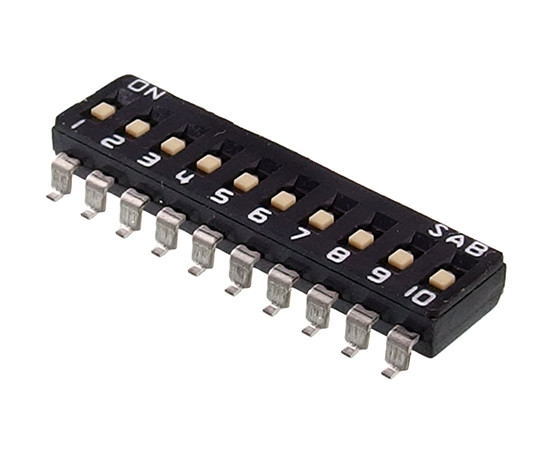

DIS10TE-R SAB Dip-switch

Symbol Micros: PRZ DIS10TE-R

82687

PRZ DIS10TE-R

Contractor Symbol:

Case : Rys.DIS10TE

Datasheet

Technical drawing Add to favourites

10 contacts, Pure-Tin Plated, DIL enclosure; black colour, height 3.60mm + knob 0.6mm; type: IC

Parameters

Overall length:	25,84mm
Manufacturer:	SAB
Number of sections:	10
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	SMD

All parameters

Manufacturer:: SAB Manufacturer part number: DIS10TE RoHS Case style: Rys.DIS10TE Datasheet

In stock:

166 pcs.

Quantity of pcs.	1+	5+	20+	40+	184+
Net price (EUR)	1,1566	0,7611	0,6263	0,5920	0,5509

Add to comparison tool Add inquiry (RFQ)

Packaging:
20/184 Quantity (multiple: 1)

- +

• Parameters

Overall length:	25,84mm
Manufacturer:	SAB
Number of sections:	10
Colour:	Black
Mechanical durability:	5000 cycles
Type of slider:	Raised
Mounting:	SMD
Terminal pitch [m]:	2,54mm
