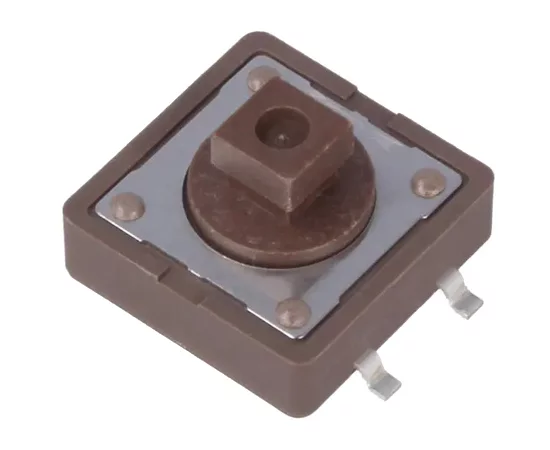

DTSM-24N-V-T/R DIPTRONICS Tact switch

Symbol Micros: PRZ DTSM-24N-V-T/R

340519

PRZ DTSM-24N-V-T/R

Contractor Symbol:

Case : rys.DTSM-24N-V-T/R

Datasheet

Technical drawing Add to favourites

12x12mm H=7.3mm, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm SMD, operating force 160c50gf, taped

Parameters

Dimensions:	12x12mm
Height [m]:	7,3mm
Operating Force [gF]:	160gF
Manufacturer:	DIPTRONICS
Mechanical durability:	100000 cycles
Mounting:	SMD

All parameters

Manufacturer:: DIPTRONICS Manufacturer part number: DTSM-24N-V-T/R RoHS Case style: rys.DTSM-24N-V-T/R Datasheet

In stock:

500 pcs.

Quantity of pcs.	3+	20+	100+	500+	2000+
Net price (EUR)	0,3463	0,1920	0,1515	0,1376	0,1331

Add to comparison tool Add inquiry (RFQ)

Packaging:
500 Quantity (multiple: 1)

- +

Manufacturer:: DIPTRONICS Manufacturer part number: DTSM-24N-V-T/R Case style: rys.DTSM-24N-V-T/R

External warehouse:

38000 pcs.

Quantity of pcs.	500+ (Please wait for the order confirmation)
Net price (EUR)	0,1331

Add to comparison tool Add inquiry (RFQ)

Packaging:
500

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

Manufacturer:: DIPTRONICS Manufacturer part number: DTSM-24N-V-T/R Case style: rys.DTSM-24N-V-T/R

External warehouse:

1100 pcs.

Quantity of pcs.	100+ (Please wait for the order confirmation)
Net price (EUR)	0,1425

Add to comparison tool Add inquiry (RFQ)

Packaging:
100

Place an order

Delivery within 4-7 business days.
Minimum order amount
must exceed 40 Euro.

• Parameters

Dimensions:	12x12mm
Height [m]:	7,3mm
Operating Force [gF]:	160gF
Manufacturer:	DIPTRONICS
Mechanical durability:	100000 cycles
Mounting:	SMD
