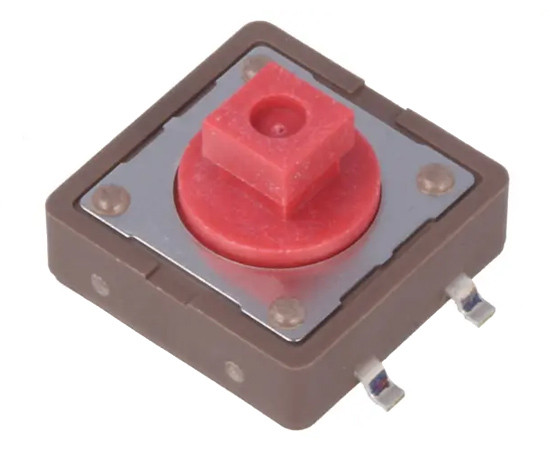

DTSM-24R-V-T/R DIPTRONICS Tact switch

Symbol Micros: PRZ DTSM-24R-V-T/R

340529

PRZ DTSM-24R-V-T/R

Contractor Symbol:

Case : rys.DTSM-24R-V-T/R

Datasheet

Technical drawing Add to favourites

12x12mm H=7.3mm, 12V DC, 50 mA, life 100000 cycles, travel 0.25c0.1mm SMD, operating force 260c50gf, taped

Parameters

Dimensions:	12x12mm
Height:	7,3mm
Operating Force [gF]:	260gF
Mechanical durability:	100000 cycles
Manufacturer:	DIPTRONICS
Mounting:	SMD

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	12x12mm
Height:	7,3mm
Operating Force [gF]:	260gF
Mechanical durability:	100000 cycles
Manufacturer:	DIPTRONICS
Mounting:	SMD
