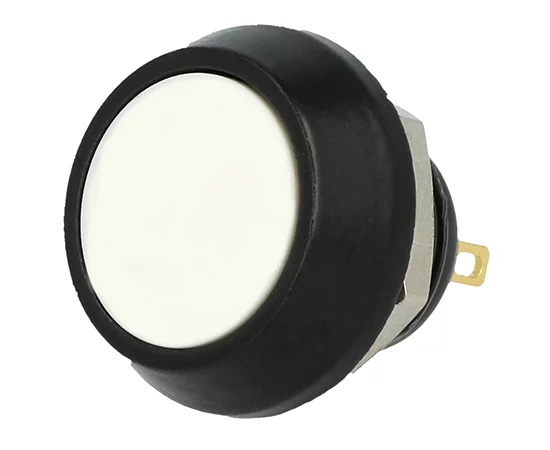

Vandal proof push button switch; GQ12B-10/J/W/A

Symbol Micros: PRZ GQ12B-10/J/W/A

380510

PRZ GQ12B-10/J/W/A

Contractor Symbol:

Case : Rys.GQ12B-10/J/W/A

Datasheet

Technical drawing Add to favourites

12mm; momentary; OFF-(ON); SPST-NO; aluminum, white; pin terminals; front shape-domed; 2A; 36VDC; IP65; lifetime: 1000000 cycles

Parameters

Contacts rating:	2A/36VDC
Switching method:	NO/OFF-(ON)
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	SPST-NO
Leads:	For soldering
Mounting hole diameter:	12mm

All parameters

Manufacturer:: ONPOW Manufacturer part number: GQ12B-10/J/W/A RoHS Case style: Rys.GQ12B-10/J/W/A

In stock:

40 pcs.

Quantity of pcs.	1+	3+	10+	40+	200+
Net price (EUR)	2,2136	1,8549	1,6496	1,5340	1,4750

Add to comparison tool Add inquiry (RFQ)

Packaging:
40 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VDC
Switching method:	NO/OFF-(ON)
Button shape:	Convex
IP rating:	IP65
Contacts configuration:	SPST-NO
Leads:	For soldering
Mounting hole diameter:	12mm
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	Onpow
Type of switch:	Vandal-resistant
