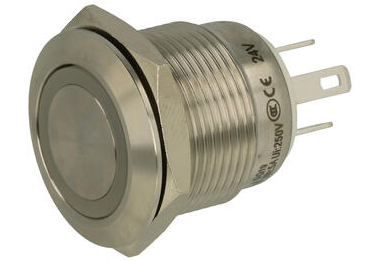

GQ16F-10E/J/G/24V/S Onpow

Symbol Micros: PRZ GQ16F-10E/J/G/24V/S

498054

PRZ GQ16F-10E/J/G/24V/S

Contractor Symbol:

Case : Rys.PRZ GQ16F-10E/J/G/24V/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; OFF-(ON); SPST-NO; stainless steel; silver; pin terminals illuminated LED 24V; 2A; annular; green; 36VDC; IP65; lifetime: 1000000 cycles

Parameters

Contacts rating:	2A/36VDC
Backlight colour:	Green
Switching method:	OFF-(ON)
Button shape:	Flat
IP rating:	IP65
Leads:	For soldering
Contacts configuration:	SPST-NO

All parameters

Manufacturer:: ONPOW Manufacturer part number: GQ16F-10E/J/G/24V/S RoHS Case style: Rys.PRZ GQ16F-10E/J/G/24V/S

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	5,0906	4,3762	4,0971	3,9481	3,9149

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	2A/36VDC
Backlight colour:	Green
Switching method:	OFF-(ON)
Button shape:	Flat
IP rating:	IP65
Leads:	For soldering
Contacts configuration:	SPST-NO
Mounting hole diameter:	16mm
Illumination:	Ring illuminated
Illimination voltage:	24V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	Onpow
Type of switch:	Vandal-resistant
