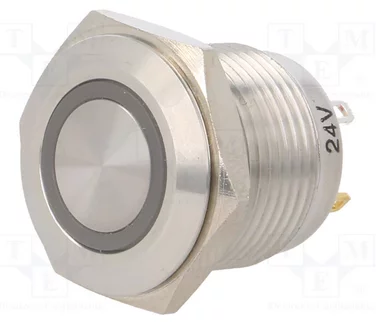

Vandal proof push button switch; GQ16F-10E/J/R/24V/S

Symbol Micros: PRZ GQ16F-10E/J/R/24V/S

400747

PRZ GQ16F-10E/J/R/24V/S

Contractor Symbol:

Case : Rys.GQ16F-10E/J/R/24V/S

Datasheet

Technical drawing Add to favourites

16mm; momentary; OFF-(ON); SPST-NO; aluminium; silver; pin terminals; front shape-flat; illuminated LED 24V; ring; red; 2A; 36VDC; IP65; mechanical life: 1000000 cycles

Parameters

Backlight colour:	Red
Switching method:	OFF-(ON)
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	SPST-NO
Leads:	For soldering
Mounting hole diameter:	16mm

All parameters

Manufacturer:: ONPOW Manufacturer part number: GQ16F-10E/J/R/24V/S RoHS Case style: Rys.GQ16F-10E/J/R/24V/S

In stock:

20 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,9534	4,2585	3,9885	3,8430	3,8101

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Red
Switching method:	OFF-(ON)
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	SPST-NO
Leads:	For soldering
Mounting hole diameter:	16mm
Illumination:	Edge
Illimination voltage:	24V
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	Onpow
Type of switch:	Vandal-resistant
