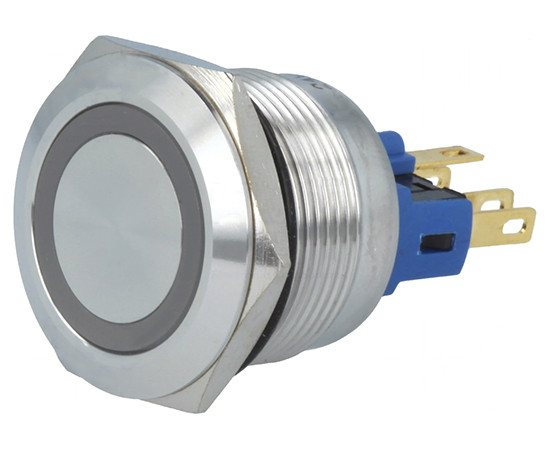

Vandal proof push button switch; GQ22-11E/R/24V

Symbol Micros: PRZ GQ22-11E/R/24V

380525

PRZ GQ22-11E/R/24V

Contractor Symbol:

Case : Rys.GQ22-11E/R/24V

Datasheet

Technical drawing Add to favourites

22mm; momentary; ON-(ON); SPST-NO + SPST-NC; stainless steel; pin terminals; front shape-flat; illuminated LED 24V; ring; red; 5A, IP65; lifetime: 1000000 cycles

Parameters

Contacts rating:	5A/24VDC
Backlight colour:	Red
Switching method:	ON-(ON)
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	SPST-NO + SPST-NC
Leads:	For soldering

All parameters

Manufacturer:: ONPOW Manufacturer part number: GQ22-11E/R/24V RoHS Case style: Rys.GQ22-11E/R/24V

In stock:

10 pcs.

Quantity of pcs.	1+	3+	10+	20+	40+
Net price (EUR)	8,7624	8,1937	7,8374	7,7099	7,6202

Add to comparison tool Add inquiry (RFQ)

Packaging:
10 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	5A/24VDC
Backlight colour:	Red
Switching method:	ON-(ON)
Button shape:	Flat
IP rating:	IP65
Contacts configuration:	SPST-NO + SPST-NC
Leads:	For soldering
Mounting hole diameter:	22mm
Switch operation:	Momentary
Button marking:	N/A
Manufacturer:	Onpow
Type of switch:	Vandal-resistant
