H8553VBNAF Bulgin

Symbol Micros: PRZ H8553VBNAF

119642

PRZ H8553VBNAF

Contractor Symbol:

Case : Rys.H8553VBNAF

Datasheet

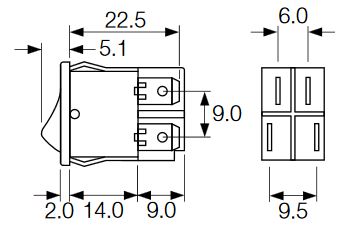

Technical drawing Add to favourites

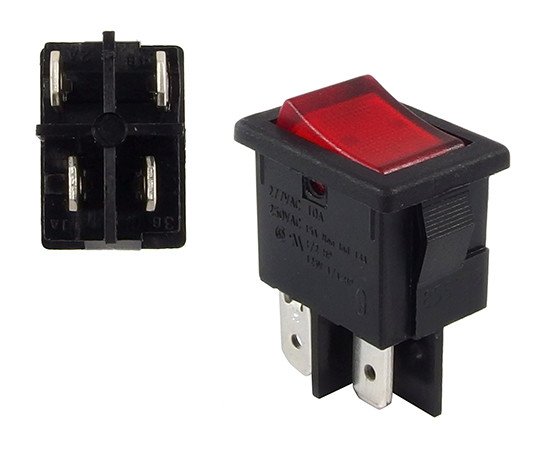

ON-OFF; red illuminated; 230V; housing colour: black; DPST; 4P; 10A 250VAC; connectors: 4,8x0,8mm; dimensions: 19.3x12.9mm

Parameters

Contacts rating:	10A 250VAC
Key button colour:	Red
Backlight colour:	Red
Contacts configuration:	DPST
Manufacturer:	Bulgin
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 250VAC
Key button colour:	Red
Backlight colour:	Red
Contacts configuration:	DPST
Manufacturer:	Bulgin
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)
Body colour:	Black
Accessories type:	N/A
Type of switch:	Button
