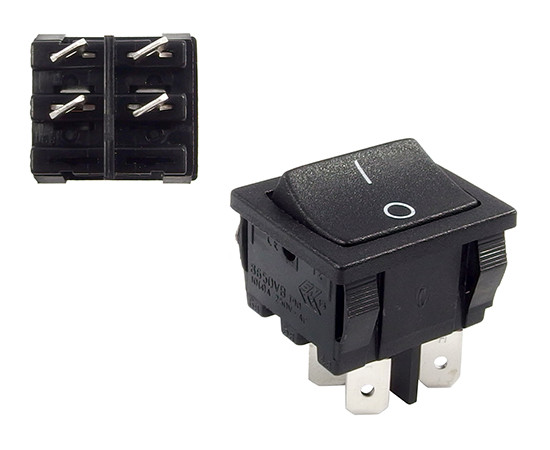

H8650VBAAG Bulgin Rocker switch

Symbol Micros: PRZ H8650VBAAG

119646

PRZ H8650VBAAG

Contractor Symbol:

Case : Rys.H8650VBAAG

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; double cap; DPST; 4P; 10A 250VAC; connectors 4,8x0,8mm; mounting hole diameter: 21.9 x 19.3mm

Parameters

Contacts rating:	10A 250V
Key button colour:	Black
Contacts configuration:	DPST
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 250V
Key button colour:	Black
Contacts configuration:	DPST
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)
Body colour:	Black
Accessories type:	N/A
Manufacturer:	Bulgin
Type of switch:	Rocker
