H8653VBNBP Bulgin

Symbol Micros: PRZ H8653VBNBP

119648

PRZ H8653VBNBP

Contractor Symbol:

Case : Rys.H8653VBNBP

Datasheet

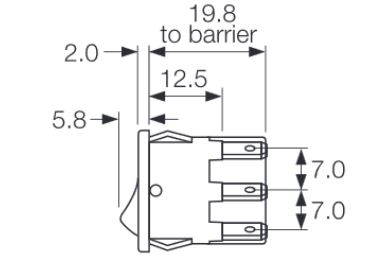

Technical drawing Add to favourites

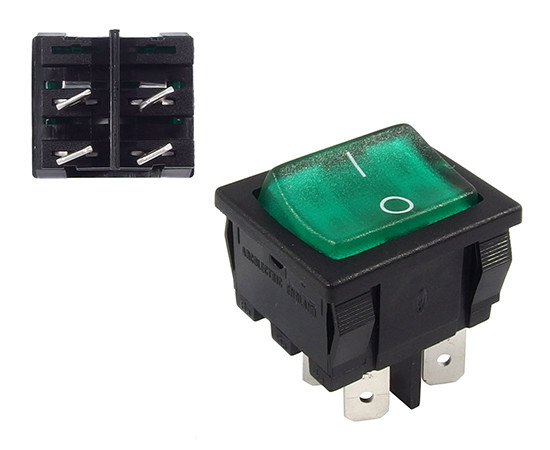

ON-OFF; green illuminated 230V; housing colour: black; DPST; 4P; 10A 250VAC; connectors: 4,8x0,8mm; dimensions: 21.9x19.3mm

Parameters

Contacts rating:	10A 250VAC
Key button colour:	Green
Backlight colour:	Green
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Leads:	Connectors (4,8x0,8mm)

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 250VAC
Key button colour:	Green
Backlight colour:	Green
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Leads:	Connectors (4,8x0,8mm)
Manufacturer:	Bulgin
Accessories type:	N/A
Type of switch:	Button
