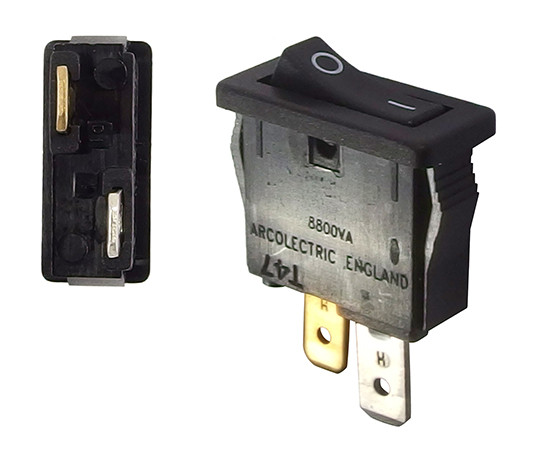

H8800VAAAB Bulgin Rocker switch

Symbol Micros: PRZ H8800VAAAB

119640

PRZ H8800VAAAB

Contractor Symbol:

Case : Rys.H8800VAAAB

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; SPST; 2P; 10A 250VAC; connectors 4.8x0.8mm; mounting hole diameter: 19.4 x 6.9mm

Parameters

Contacts rating:	10A 250V
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)
Body colour:	Black
Accessories type:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 250V
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Leads:	Connectors (4,8x0,8mm)
Body colour:	Black
Accessories type:	N/A
Manufacturer:	Bulgin
Type of switch:	Rocker
