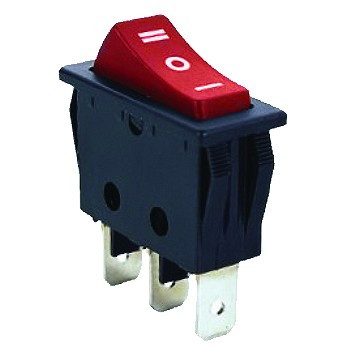

IRS101-11C6r; illuminated; rocker switch;

Symbol Micros: PRZ Irs101-11c6r

37184

PRZ Irs101-11c6r

Contractor Symbol:

Case : Rys.IRS101-11C6r

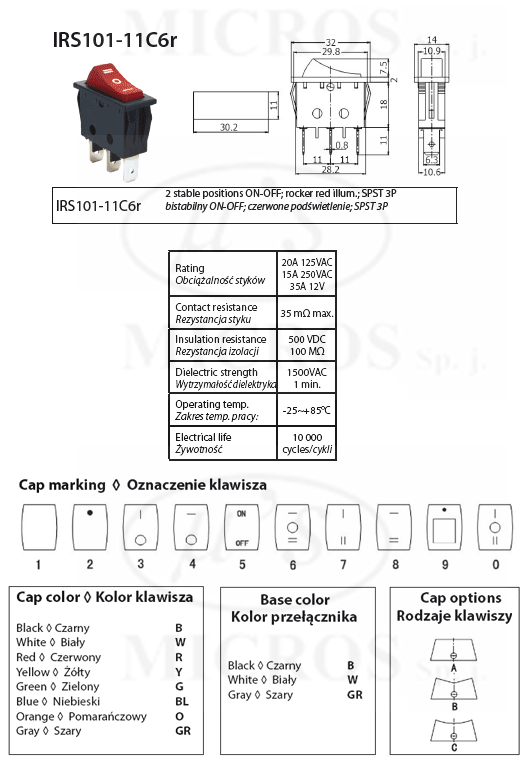

Datasheet

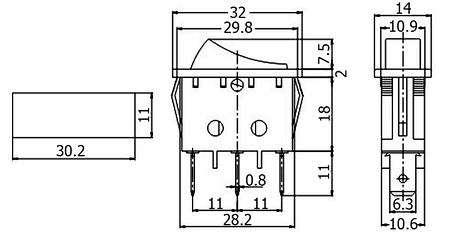

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; housing colour: black; SPST; 3P; 20A 125V; 15A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
