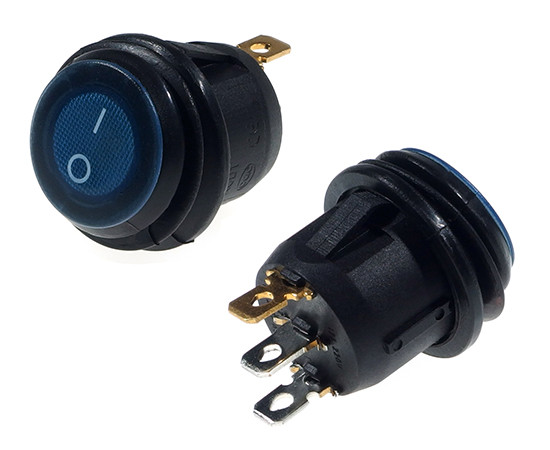

IRS101-6bl; illuminated; rocker switch;

Symbol Micros: PRZ Irs101-6bl

249995

PRZ Irs101-6bl

Contractor Symbol:

Case : Rys.IRS101-6bl

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker blue; LED; 230V; illumination; with waterproof cap; SPST; 3P; 10A 125VAC; 6A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125VAC 6A 250VAC
Key button colour:	Blue
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	10A 125VAC 6A 250VAC
Key button colour:	Blue
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
