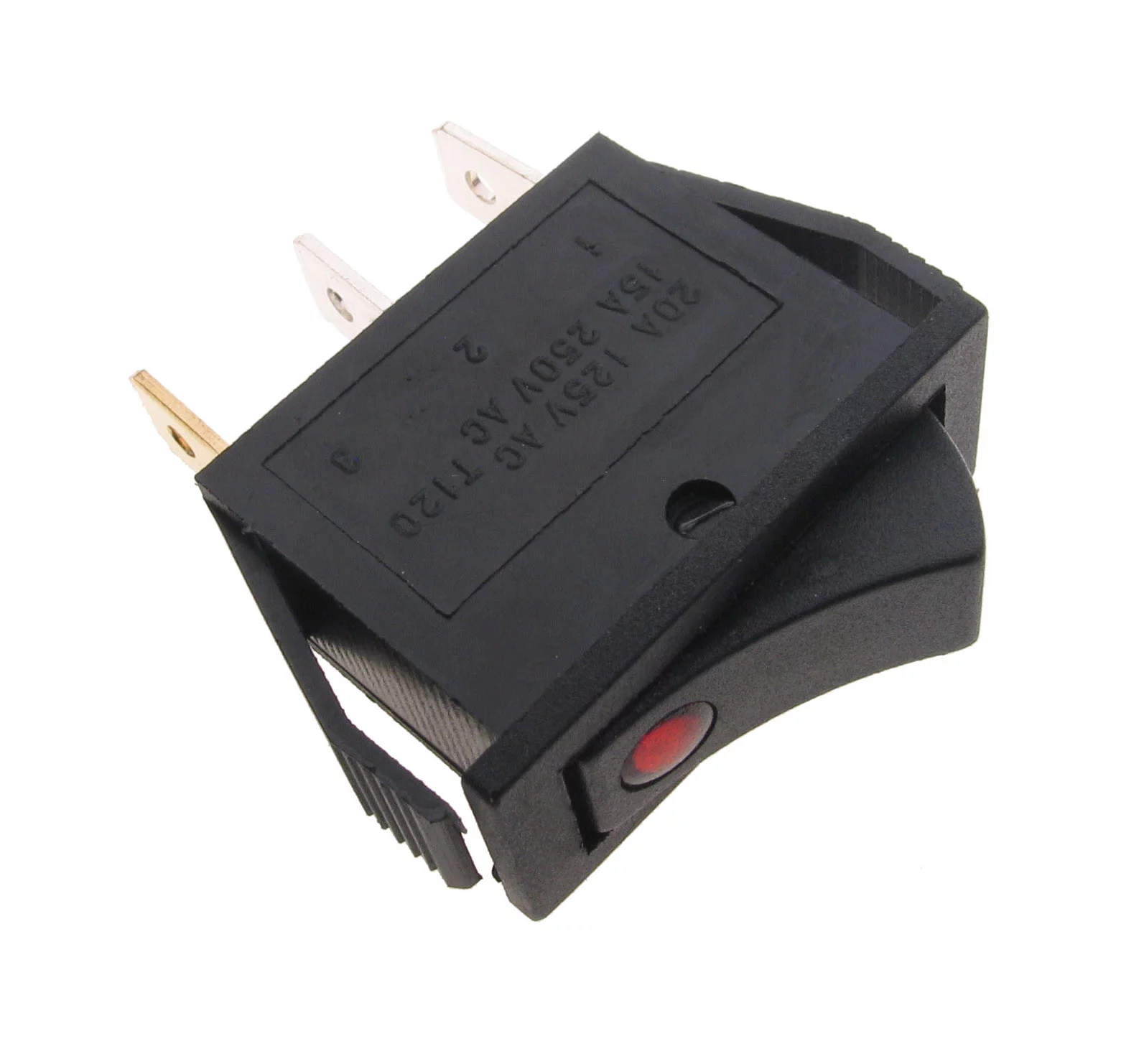

IRS101E-1C2r; illuminated; rocker switch;

Symbol Micros: PRZ Irs101E-1cr

23290

PRZ Irs101E-1cr

Contractor Symbol:

Case : Rys.IRS101E-1C2r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; SPST; 3P; 20A 125V; 15A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Black
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: IRS101E-1C Red RoHS Case style: Rys.IRS101E-1C2r

In stock:

80 pcs.

Quantity of pcs.	2+	10+	30+	100+	400+
Net price (EUR)	0,7891	0,4956	0,4110	0,3664	0,3429

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Black
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
