IRS201-1C3r; illuminated; rocker switch;

Symbol Micros: PRZ Irs201-1c3r

51109

PRZ Irs201-1c3r

Contractor Symbol:

Case : Rys.IRS201-1C3r

Datasheet

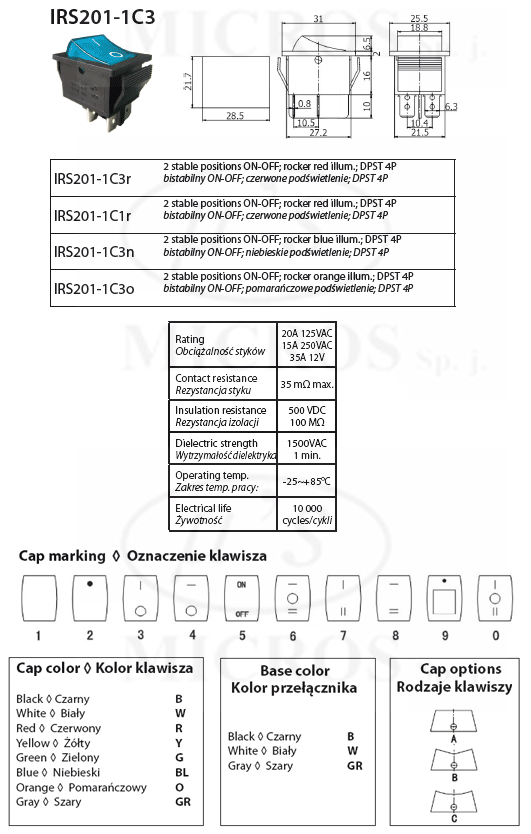

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; housing colour: black; DPST; 4P; 20A 125V; 15A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: IRS-201-1C3 R RoHS Case style: Rys.IRS201-1C3r

In stock:

200 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	0,9784	0,7185	0,5767	0,4940	0,4656

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	20A 125V 15A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
