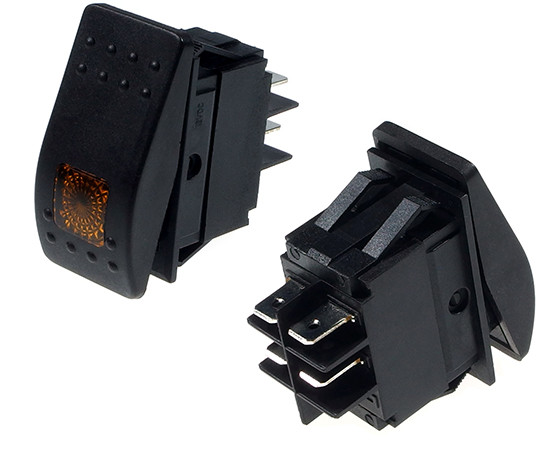

IRS203o illuminated rocker switch

Symbol Micros: PRZ Irs203o

250157

PRZ Irs203o

Contractor Symbol:

Case : Rys.IRS203

Datasheet

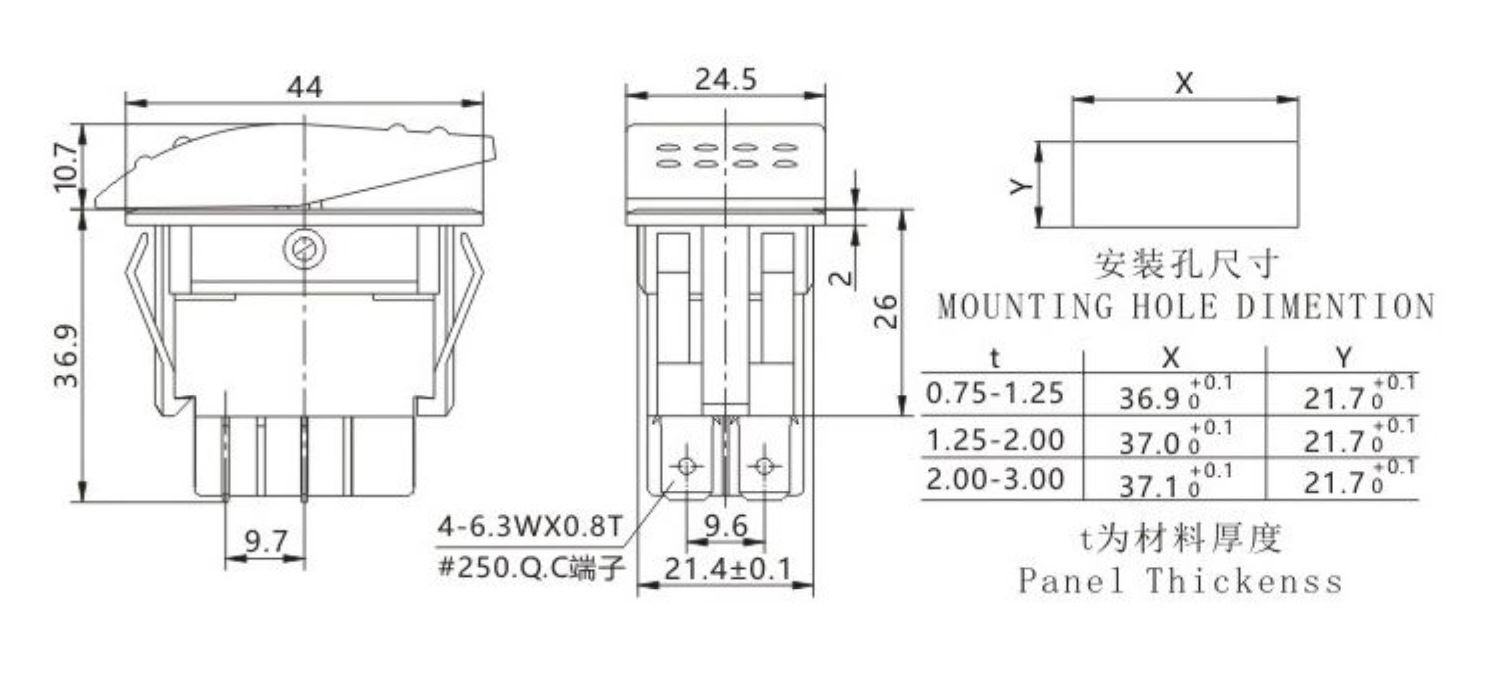

Technical drawing Add to favourites

20A 125VAC; 16A 250VAC; 2 stable positions; ON-OFF; DPST4P; with orange lamp; endurance 20000 cycle; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Orange
Contacts rating:	20A125VAC 16A250VAC
Key button colour:	Black
Contacts configuration:	DPST
Switching method:	ON-OFF
Mechanical durability:	20000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: FILN Manufacturer part number:   Case style: Rys.Irs203o

In stock:

0 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	3,9981	3,3825	3,0150	2,7762	2,6826

Add to comparison tool Add inquiry (RFQ)

Packaging:
50 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Orange
Contacts rating:	20A125VAC 16A250VAC
Key button colour:	Black
Contacts configuration:	DPST
Switching method:	ON-OFF
Mechanical durability:	20000 cycles
Operating temperature (range):	-25°C ~ 85°C
