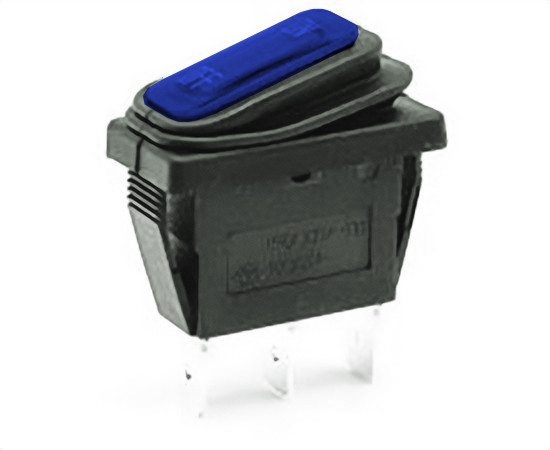

KCD1-101NA4AFBBL5 AC220; illuminated; rocker switch;

Symbol Micros: PRZ KCD1-101NA4AFBBL5 AC220

532133

PRZ KCD1-101NA4AFBBL5 AC220

Contractor Symbol:

Case : Rys.KCD1-101NA4AFBBL5 AC220

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker blue illumination; 220V; SPST; 3P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD1-101NA4AFBBL5 AC220

In stock:

200 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	1,3193	0,9172	0,7761	0,7079	0,6938

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
