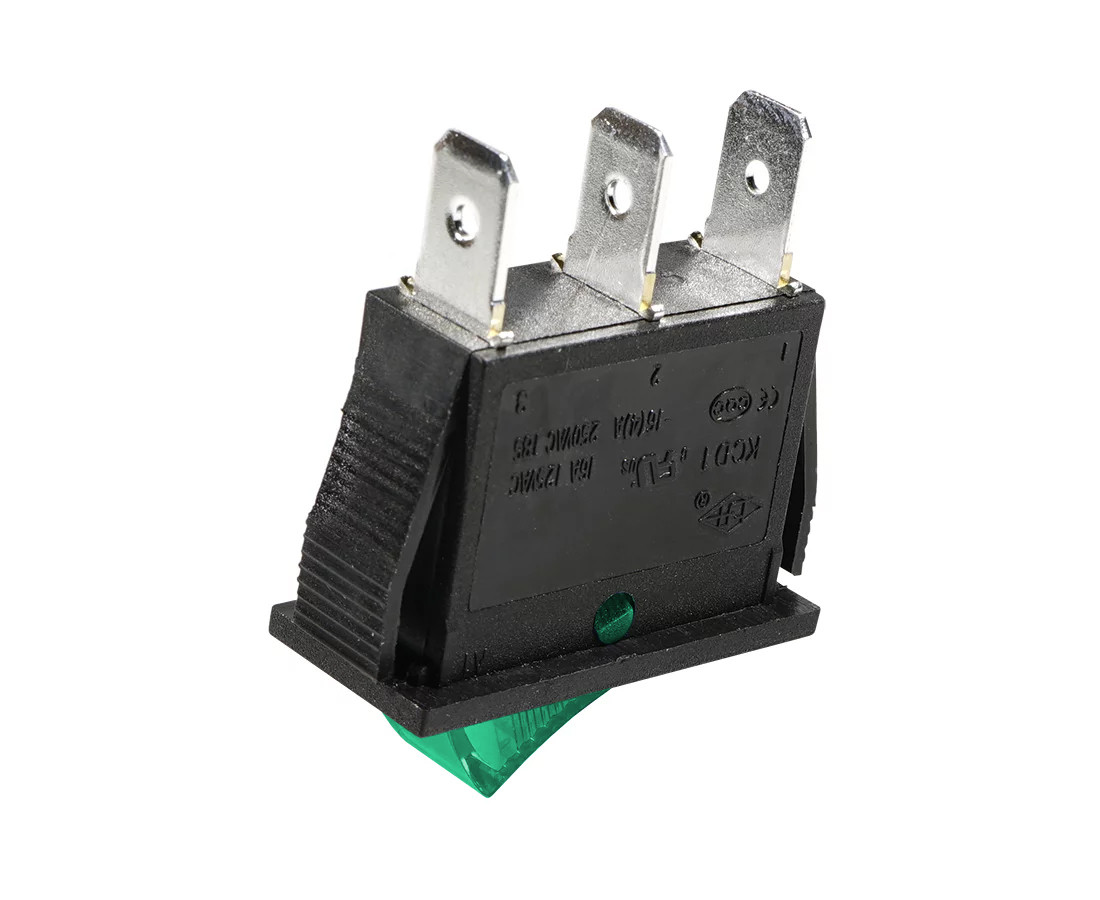

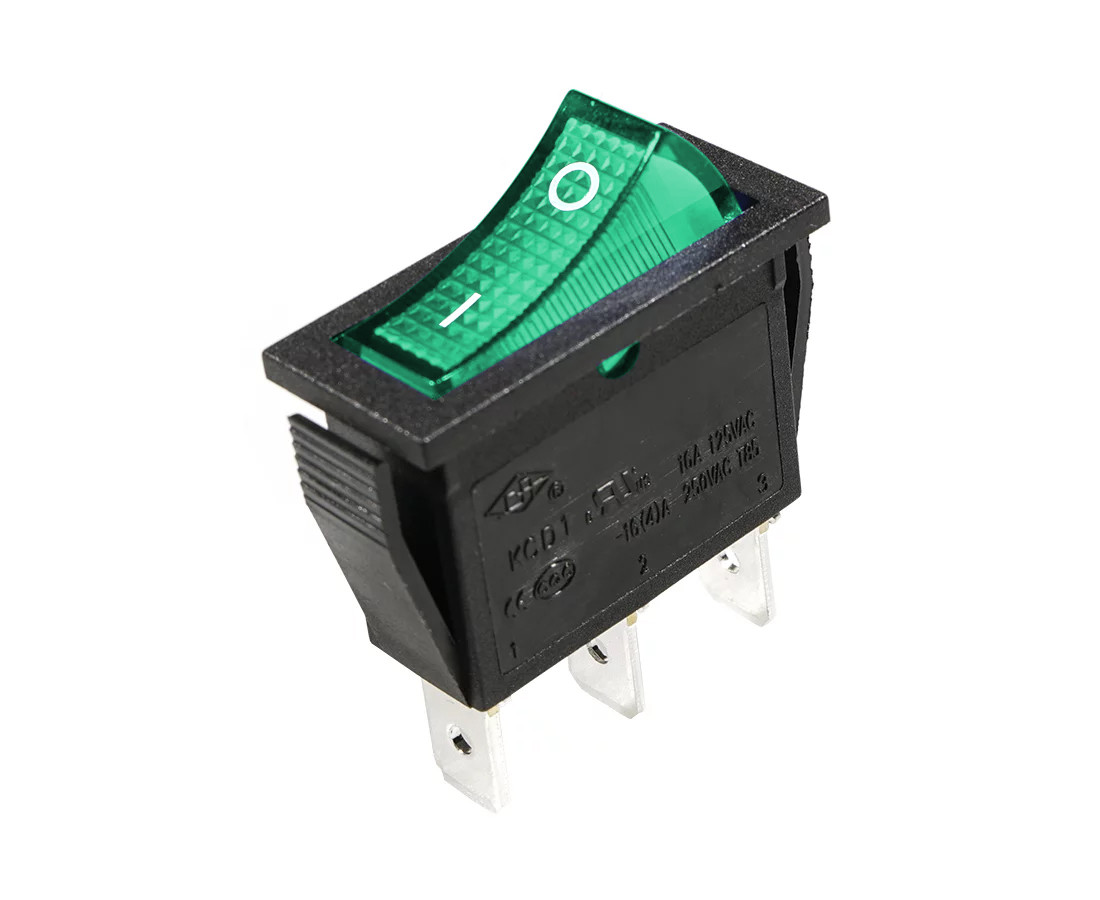

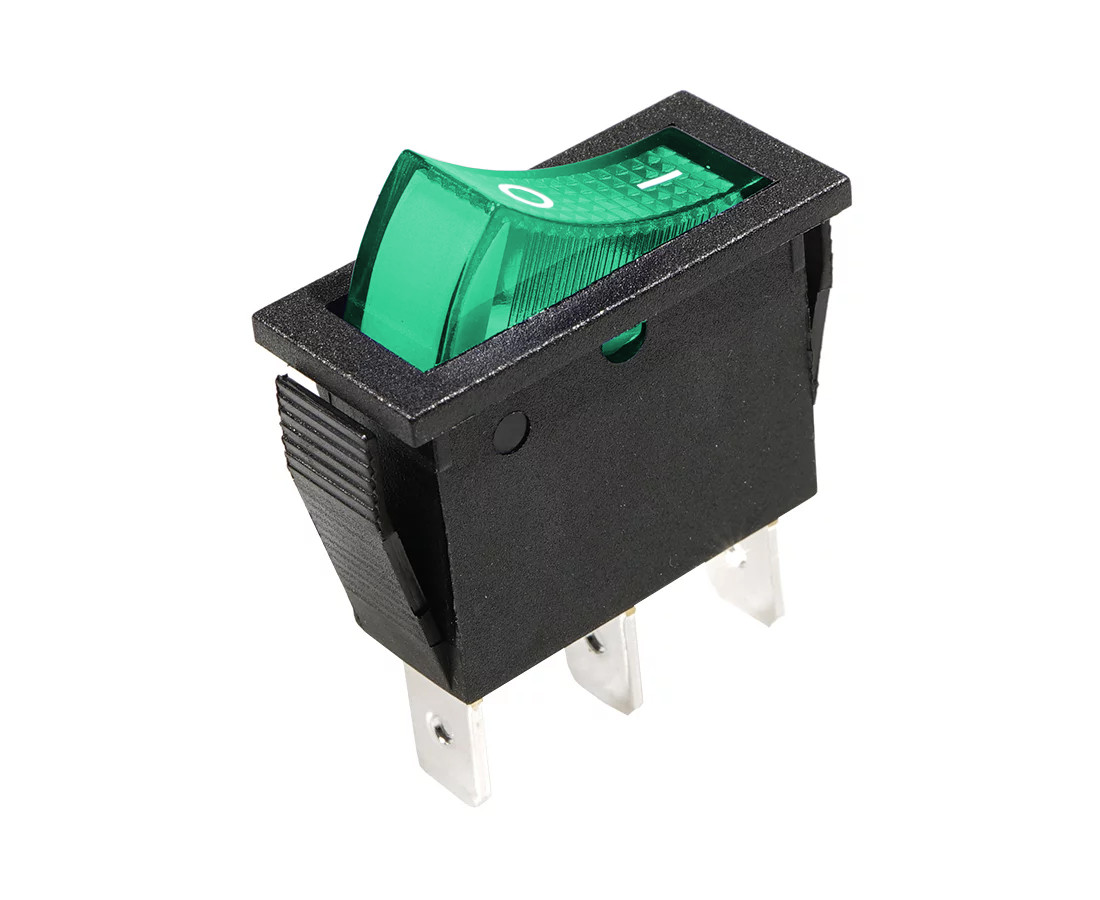

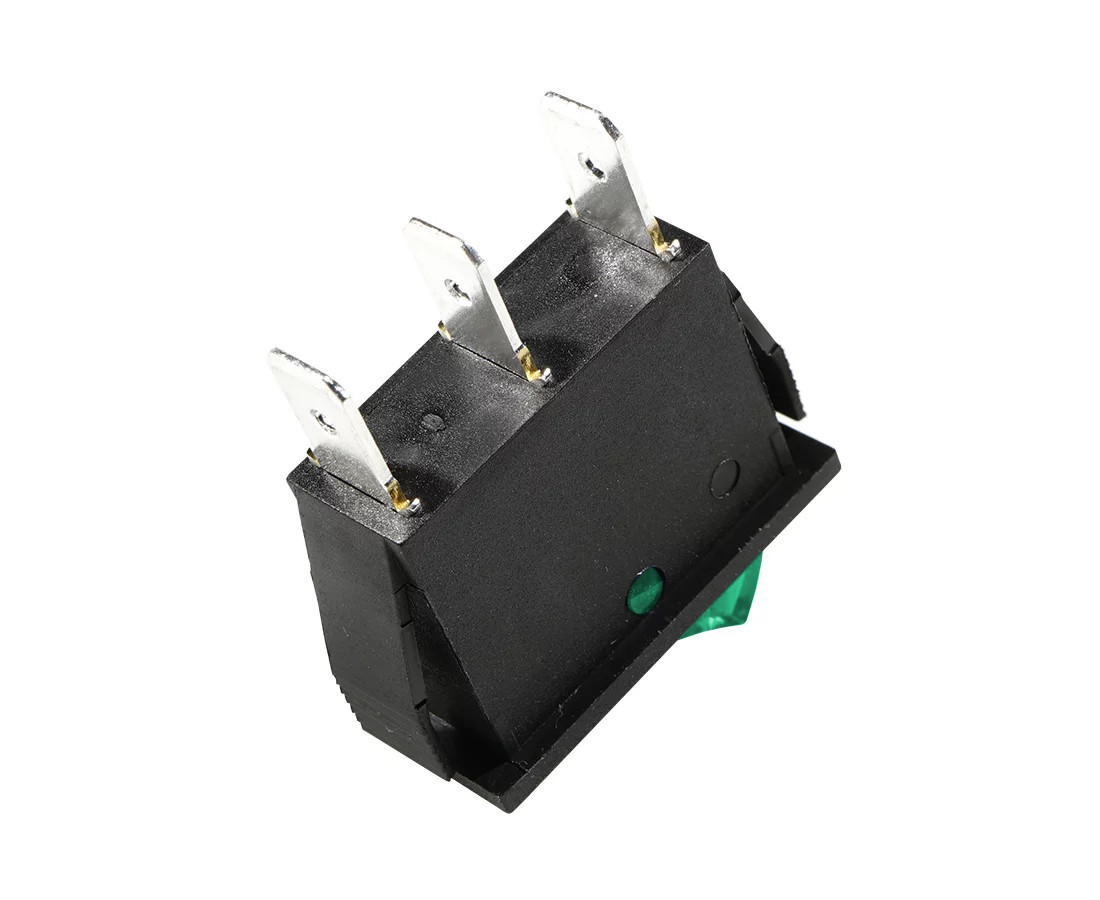

KCD1-102A1ACBG3; rocker switch;

Symbol Micros: PRZ KCD1-102A1ACBG3

532102

PRZ KCD1-102A1ACBG3

Contractor Symbol:

Case : Rys.KCD1-102A1ACBG3

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; cap colour: green; housing colour: black; SP-DT; 3P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Key button colour:	Green
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD1-102A1ACBG3

In stock:

200 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	0,9567	0,6323	0,5195	0,4678	0,4560

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Key button colour:	Green
Contacts configuration:	SPDT
Switching method:	ON-ON
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
