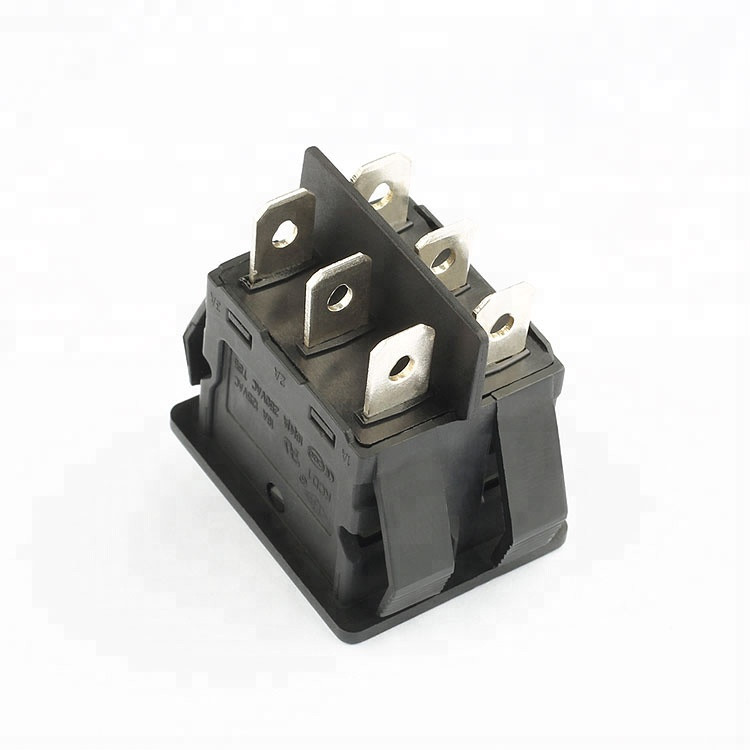

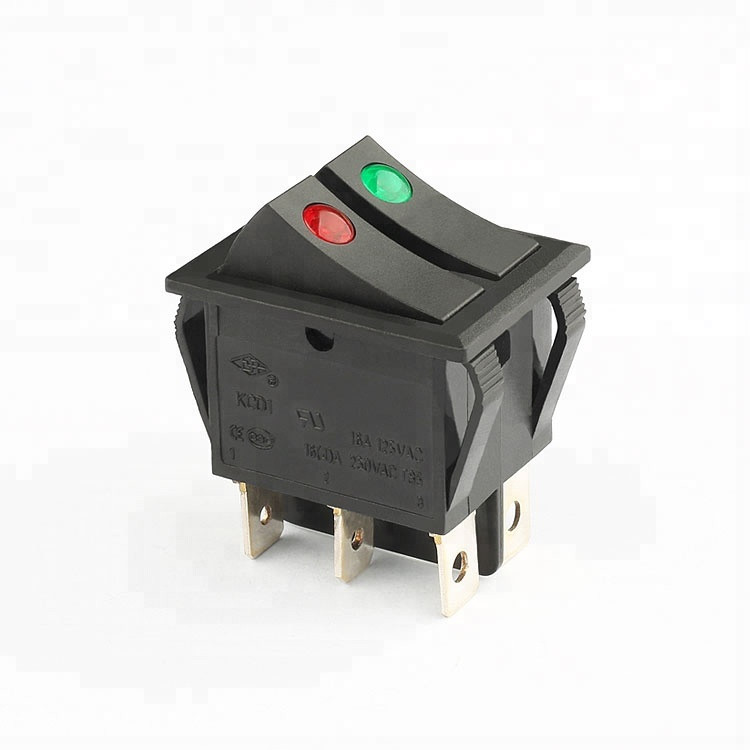

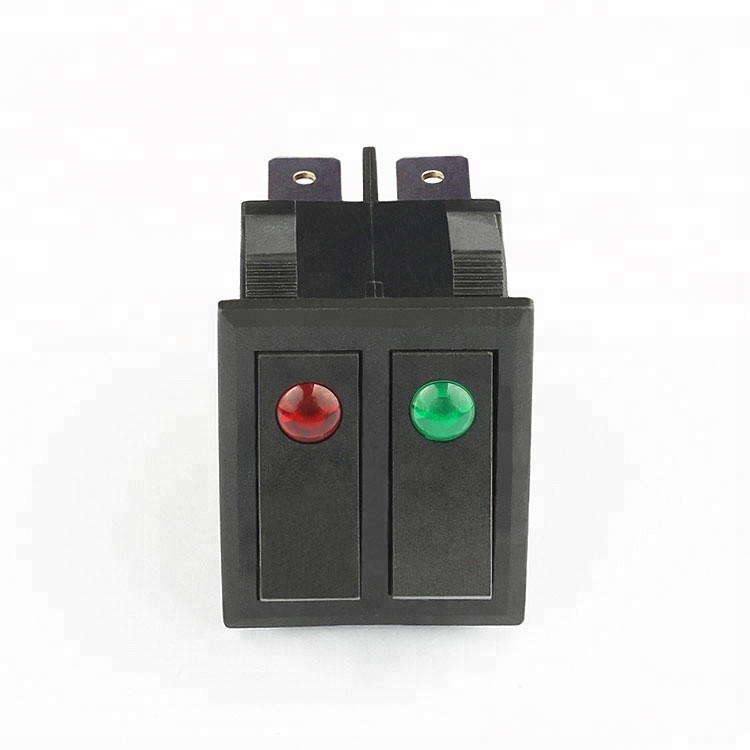

KCD1-201NB2ADBR/G AC220; illuminated; rocker switch;

Symbol Micros: PRZ KCD1-201NB2ADBR/G AC220

532137

PRZ KCD1-201NB2ADBR/G AC220

Contractor Symbol:

Case : Rys.KCD1-201NB2ADBR/G AC220

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red/green illumination; dot lighting; 220V; housing colour: black; DPST; 6P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD1-201NB2ADBR/G AC220

In stock:

200 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,5458	1,2334	1,0548	0,9468	0,9092

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
