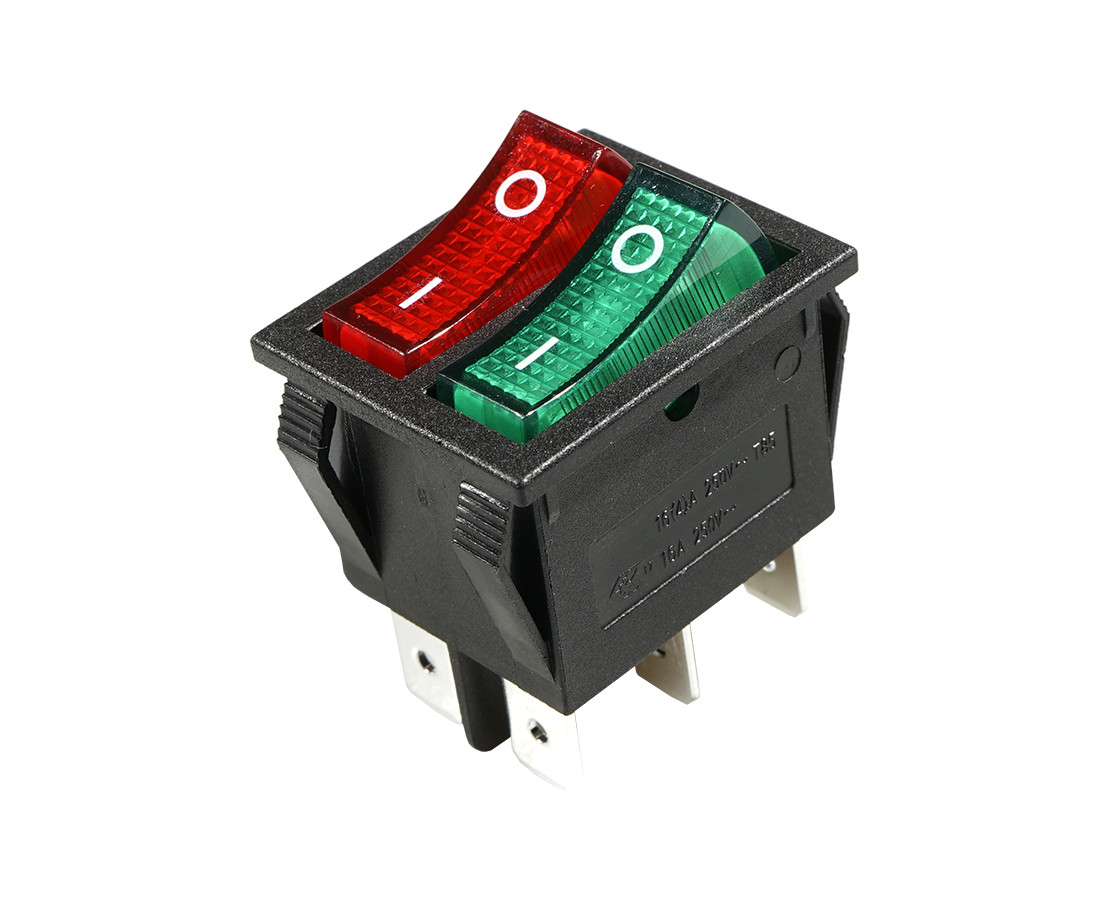

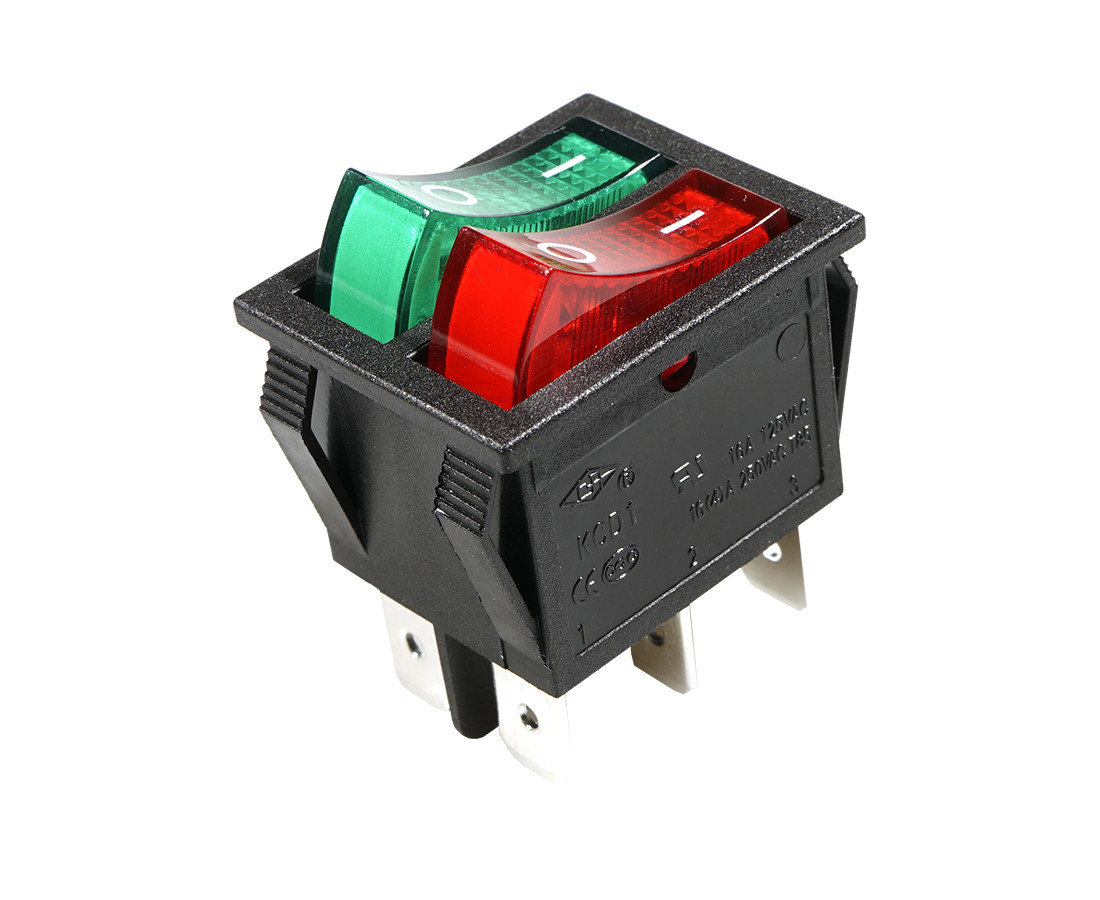

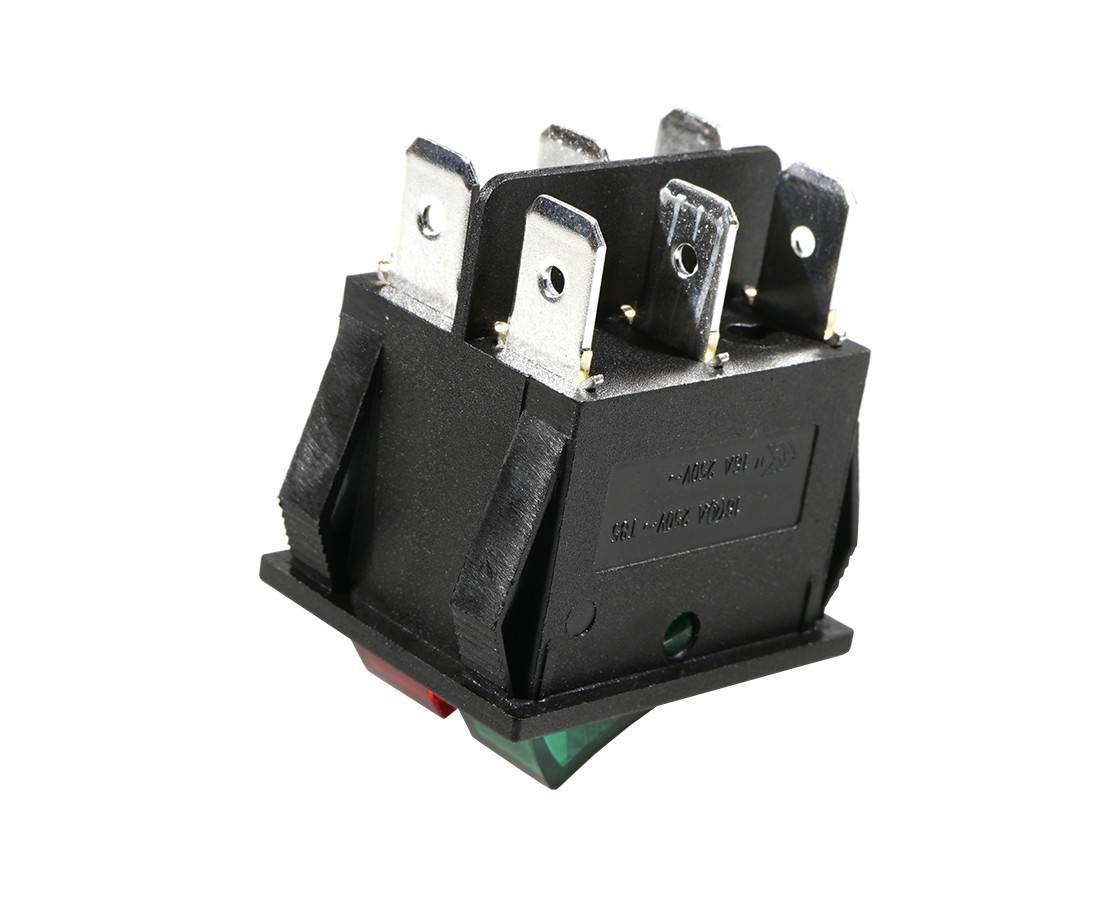

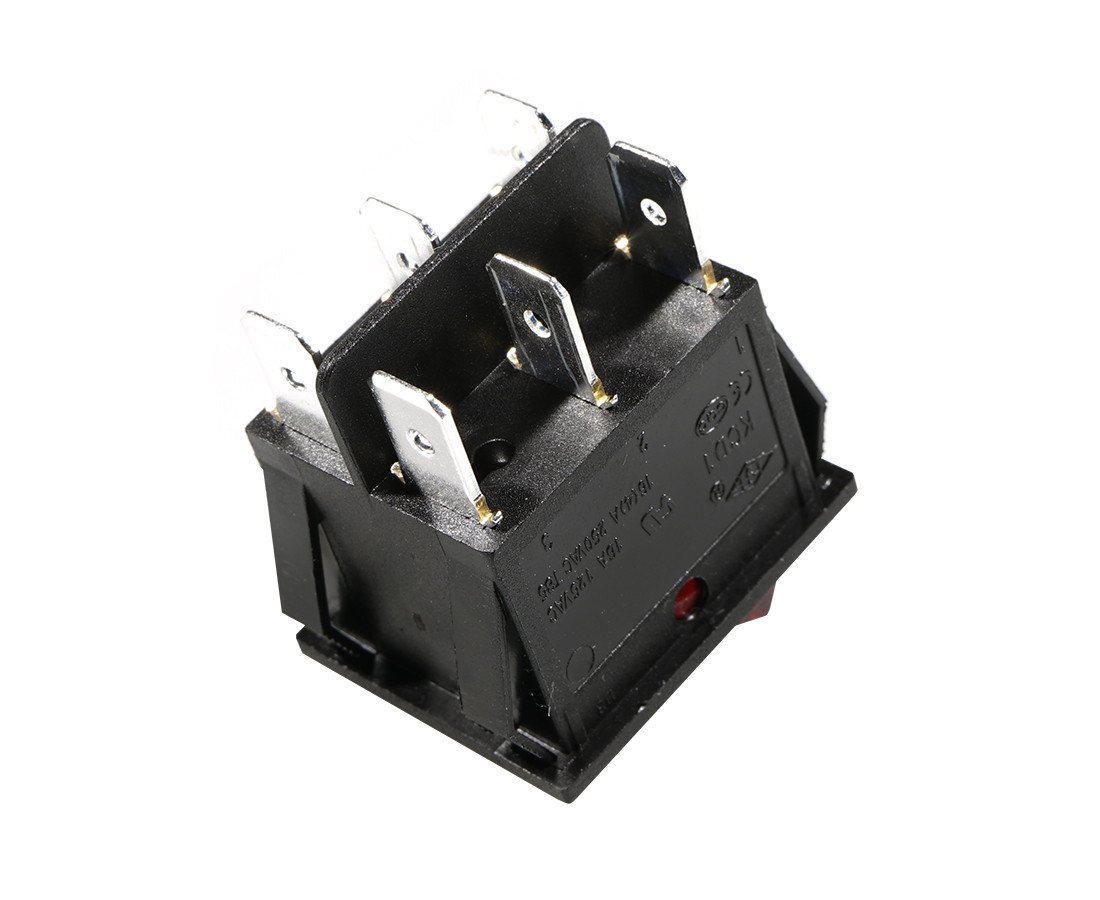

KCD1-201NB3ACBG3/R3 AC220; illuminated; rocker switch;

Symbol Micros: PRZ KCD1-201NB3ACBG3/R3 AC220

532136

PRZ KCD1-201NB3ACBG3/R3 AC220

Contractor Symbol:

Case : Rys.KCD1-201NB3ACBG3/R3 AC220

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red/green illumination; 220V; housing colour: black; DPST; 6P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD1-201NB3ACBG3/R3 AC220

In stock:

199 pcs.

Quantity of pcs.	1+	5+	50+	200+	400+
Net price (EUR)	1,6022	1,1230	0,8974	0,8551	0,8434

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
