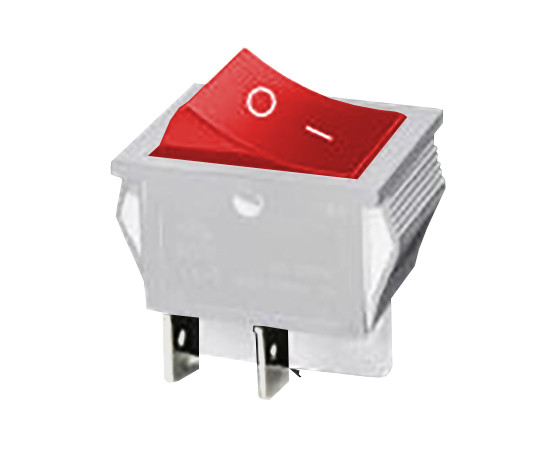

KCD2-201A1ACWR3; rocker switch;

Symbol Micros: PRZ KCD2-201A1ACWR3

532108

PRZ KCD2-201A1ACWR3

Contractor Symbol:

Case : Rys.KCD2-201A1ACWR3

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: red; housing colour: white; DP-ST; 4P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Key button colour:	Red
Contacts configuration:	DPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Body colour:	White
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD2-201A1ACWR3

In stock:

200 pcs.

Quantity of pcs.	1+	5+	50+	200+	400+
Net price (EUR)	1,0266	0,6813	0,5262	0,4957	0,4887

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Key button colour:	Red
Contacts configuration:	DPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 85°C
Body colour:	White
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
