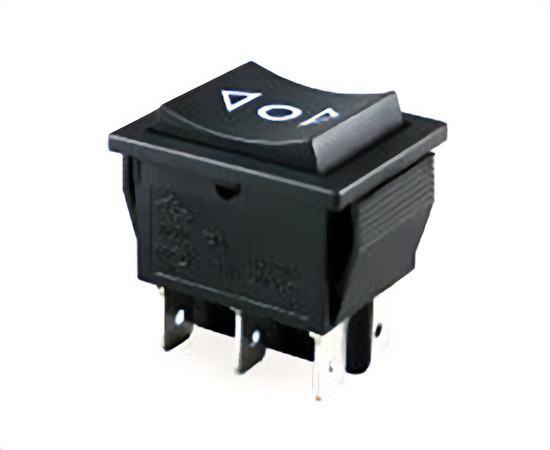

KCD2-223A1ACBB75; rocker switch;

Symbol Micros: PRZ KCD2-223A1ACBB75

532114

PRZ KCD2-223A1ACBB75

Contractor Symbol:

Case : Rys.KCD2-223A1ACBB75

Datasheet

Technical drawing Add to favourites

monostable; (ON)-OFF-(ON); cap colour: black; housing colour: black; DP-TT; 6P; 16A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	16A 250VAC
Key button colour:	Black
Contacts configuration:	DPTT
Switching method:	(ON)-OFF-(ON)
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD2-223A1ACBB75

In stock:

200 pcs.

Quantity of pcs.	1+	5+	50+	200+	400+
Net price (EUR)	1,3391	0,9374	0,7494	0,7142	0,7048

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	16A 250VAC
Key button colour:	Black
Contacts configuration:	DPTT
Switching method:	(ON)-OFF-(ON)
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
