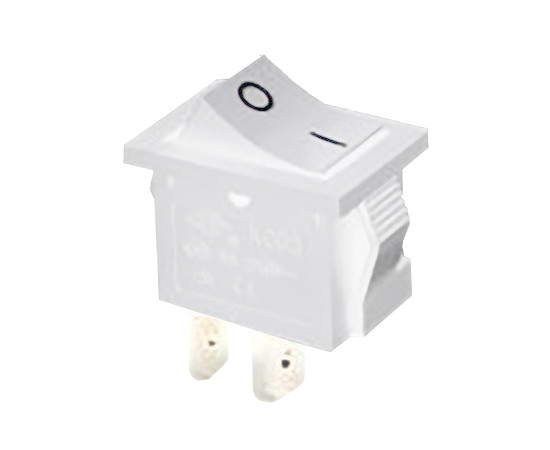

KCD3-101B1BCWW3; rocker switch;

Symbol Micros: PRZ KCD3-101B1BCWW3

532116

PRZ KCD3-101B1BCWW3

Contractor Symbol:

Case : Rys.KCD3-101B1BCWW3

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: white; housing colour: white; SP-ST; 2P; 6A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+55°C

Parameters

Contacts rating:	6A 250VAC
Key button colour:	White
Contacts configuration:	SPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	White
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD3-101B1BCWW3

In stock:

200 pcs.

Quantity of pcs.	2+	15+	100+	200+	1000+
Net price (EUR)	0,5681	0,3146	0,2488	0,2395	0,2270

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 250VAC
Key button colour:	White
Contacts configuration:	SPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	White
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
