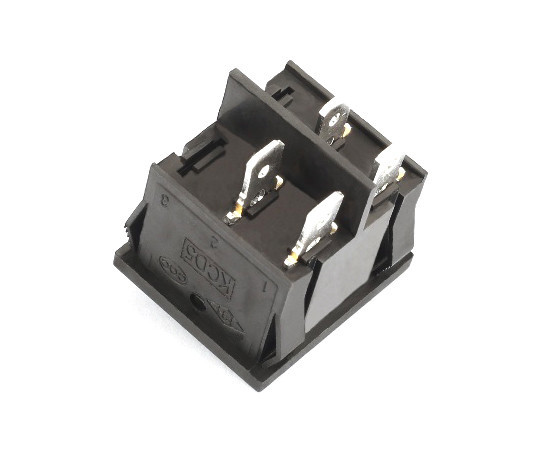

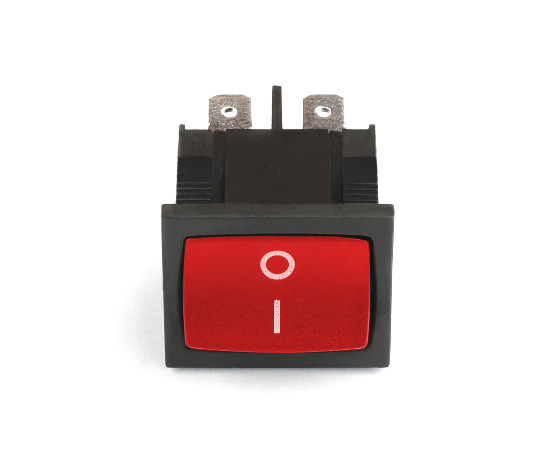

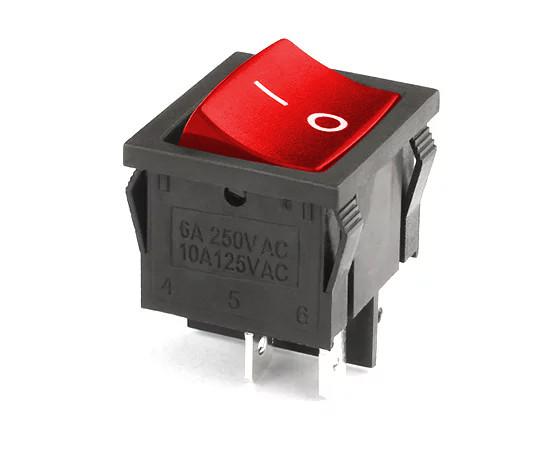

KCD5-201A2ACBR3; rocker switch;

Symbol Micros: PRZ KCD5-201A2ACBR3

534138

PRZ KCD5-201A2ACBR3

Contractor Symbol:

Case : Rys.KCD5-201A2ACBR3

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: red; housing colour: black; DP-ST; 4P; 6A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+55°C

Parameters

Contacts rating:	6A 250VAC
Key button colour:	Red
Contacts configuration:	DPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD5-201A2ACBB3

In stock:

200 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	0,9062	0,6667	0,5329	0,4578	0,4320

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 250VAC
Key button colour:	Red
Contacts configuration:	DPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
