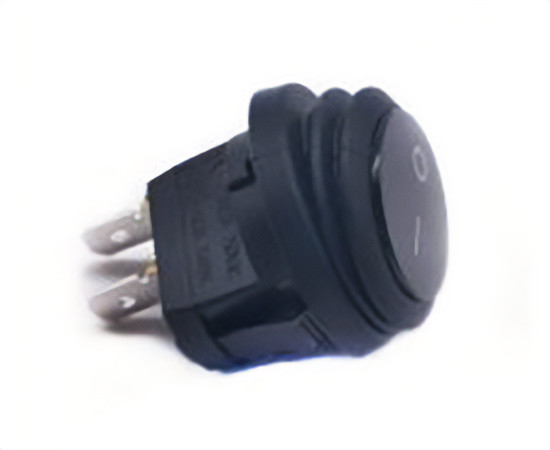

KCD8-101B1AFBB3; rocker switch;

Symbol Micros: PRZ KCD8-101B1AFBB3

532128

PRZ KCD8-101B1AFBB3

Contractor Symbol:

Case : Rys.KCD8-101B1AFBB3

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; cap colour: black; housing colour: black; SP-ST; 2P; 6A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+55°C

Parameters

Contacts rating:	6A 250VAC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	Black
Accessories type:	N/A

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD8-101B1AFBB3

In stock:

200 pcs.

Quantity of pcs.	1+	5+	50+	200+	400+
Net price (EUR)	1,0550	0,7010	0,5405	0,5098	0,5027

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 250VAC
Key button colour:	Black
Contacts configuration:	SPST
Switching method:	ON-OFF
Operating temperature (range):	-25°C ~ 55°C
Body colour:	Black
Accessories type:	N/A
Manufacturer:	N/A
Type of switch:	Rocker
