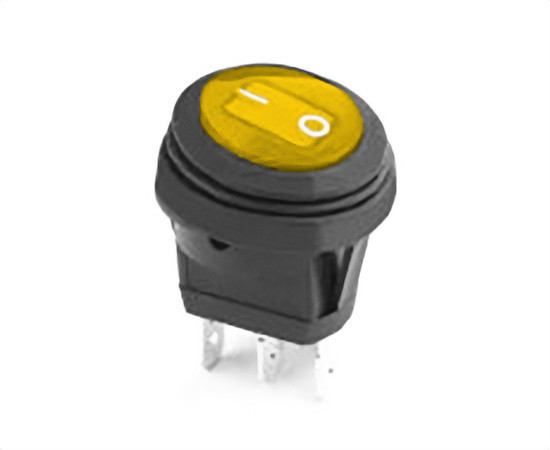

KCD8-101NB1AFBY3 AC220; illuminated; rocker switch;

Symbol Micros: PRZ KCD8-101NB1AFBY3 AC220

532155

PRZ KCD8-101NB1AFBY3 AC220

Contractor Symbol:

Case : Rys.KCD8-101NB1AFBY3 AC220

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker yellow illumination; 220V; housing colour: black; SPST; 3P; 6A 250VAC; endurance: 10000 cycles; operating temperature: -25°C+55°C

Parameters

Contacts rating:	6A 250VAC
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 55°C

All parameters

Manufacturer:: ROCK Manufacturer part number:   Case style: Rys.KCD8-101NB1AFBY3 AC220

In stock:

200 pcs.

Quantity of pcs.	1+	5+	50+	200+	400+
Net price (EUR)	1,2287	0,8152	0,6296	0,5944	0,5850

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/200 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	6A 250VAC
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 55°C
Accessories type:	N/A
Type of switch:	Button
