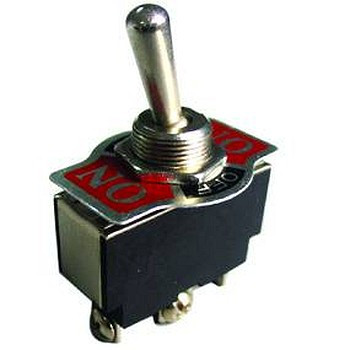

KN3B-103; toggle switch;

Symbol Micros: PRZ Kn3b103

14687

PRZ Kn3b103

Contractor Symbol:

Case : Rys.KN3B-103

Datasheet

Technical drawing Add to favourites

single pole; screw terminals; ON-OFF-ON; SPDT; 3P; 10A 125VAC; 5A 250VAC

Parameters

Contacts rating:	10A 125V 5A 250V
Switching method:	ON-OFF-ON
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever

All parameters

Manufacturer:: SWI Manufacturer part number: KN3B-103 RoHS Case style: Rys.KN3B-103

In stock:

303 pcs.

Quantity of pcs.	1+	3+	10+	50+	200+
Net price (EUR)	1,2004	0,9162	0,7588	0,6648	0,6319

Add to comparison tool Add inquiry (RFQ)

Packaging:
50/500 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-30

Quantity of pcs.: 500

• Parameters

Contacts rating:	10A 125V 5A 250V
Switching method:	ON-OFF-ON
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever
