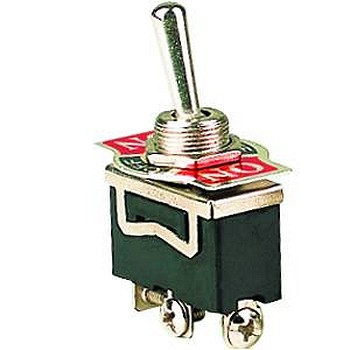

KN3C-103; toggle switch;

Symbol Micros: PRZ Kn3c103

36468

PRZ Kn3c103

Contractor Symbol:

Case : Rys.KN3C-103

Datasheet

Technical drawing Add to favourites

single pole; screw terminals; ON-OFF-ON; SPDT; 3P; 10A 125VAC; 5A 250VAC

Parameters

Switching method:	ON-OFF-ON
Contacts rating:	10A 125V 5A 250V
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching method:	ON-OFF-ON
Contacts rating:	10A 125V 5A 250V
Contacts configuration:	SPDT
Type of outputs:	Screw on
Accessories type:	N/A
Type of switch:	Lever
