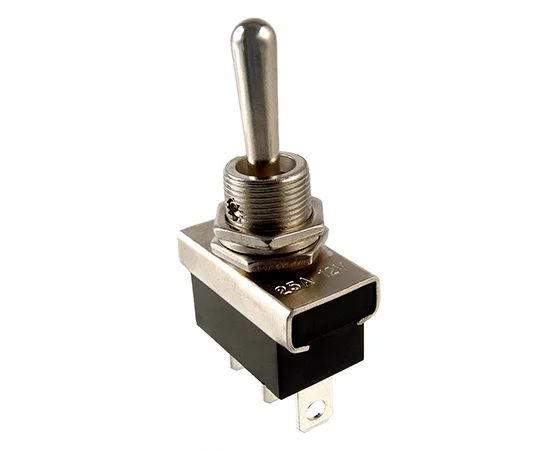

KN3D-123; toggle switch;

Symbol Micros: PRZ Kn3d123

74295

PRZ Kn3d123

Contractor Symbol:

Case : Rys.KN3D-123

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; (ON)-OFF-(ON); SPDT; 3P; 6A 125VAC; 3A 250VAC; 25A 12VDC

Parameters

Switching method:	(ON)-OFF-(ON)
Contacts rating:	3A 250V 25A 12V
Contacts configuration:	SPDT
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Switching method:	(ON)-OFF-(ON)
Contacts rating:	3A 250V 25A 12V
Contacts configuration:	SPDT
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever
