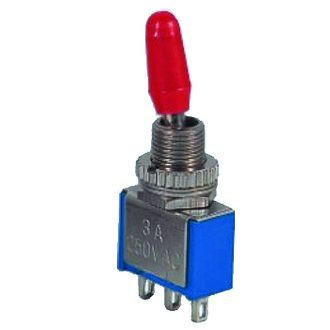

KNX-1-D1; toggle switch;

Symbol Micros: PRZ KNX-1

36365

PRZ KNX-1

Contractor Symbol:

Case : Rys.KNX-1

Datasheet

Technical drawing Add to favourites

single pole; solder terminals; with grand lever; ON-ON; SPDT; 3P; 6A 125VAC; 3A 250VAC

Parameters

Switching method:	ON-ON
Contacts configuration:	SPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever

All parameters





Add inquiry (RFQ)

Item available on request





Add inquiry (RFQ)

Item in delivery

Estimated date:
2025-11-18

Quantity of pcs.: 500

• Parameters

Switching method:	ON-ON
Contacts configuration:	SPDT
Contacts rating:	6A 125VAC 3A 250VAC
Kind of toggle:	Round
Type of outputs:	Soldering
Accessories type:	N/A
Type of switch:	Lever
