Control box; N/O+N/O

Symbol Micros: PRZ LAY5-B223

344831

PRZ LAY5-B223

Contractor Symbol:

Case : Rys.LAY5-B223

Datasheet

Technical drawing Add to favourites

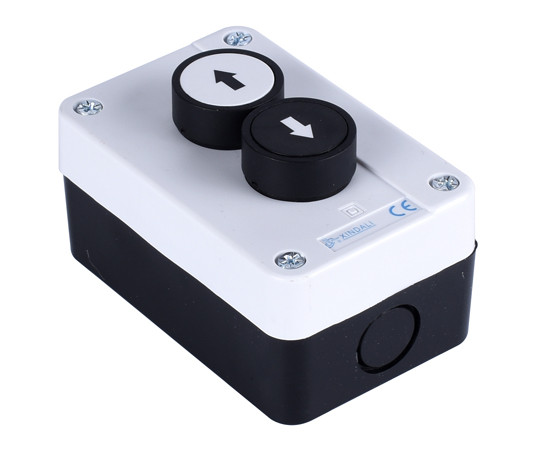

Control box; white (black arrow); + black (white arrow); flush; round; without lamp; spring return; N/O+N/O; IP54; two buttons; current: 10A; dimensions: 104x68.5x50.5+12mm

Parameters

Dimensions:	104x68.5x50.5+12mm
Button colour:	White/Black
Contacts configuration:	N/O+N/O
Accessories type:	N/A
Illumination:	None
Button shape:	Round
Number of holes:	N/A

All parameters

Manufacturer:: XINDALI Manufacturer part number: XDL55-B223 RoHS Case style: Rys.LAY5-B223

In stock:

93 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	3,6533	3,1409	2,9425	2,8339	2,8102

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	104x68.5x50.5+12mm
Button colour:	White/Black
Contacts configuration:	N/O+N/O
Accessories type:	N/A
Illumination:	None
Button shape:	Round
Number of holes:	N/A
IP rating:	IP54
Button type:	Covered
Number of buttons:	2
Manufacturer:	N/A
