Control box; N/O+N/C+N/O

Symbol Micros: PRZ LAY5-B324

344832

PRZ LAY5-B324

Contractor Symbol:

Case : Rys.LAY5-B324

Datasheet

Technical drawing Add to favourites

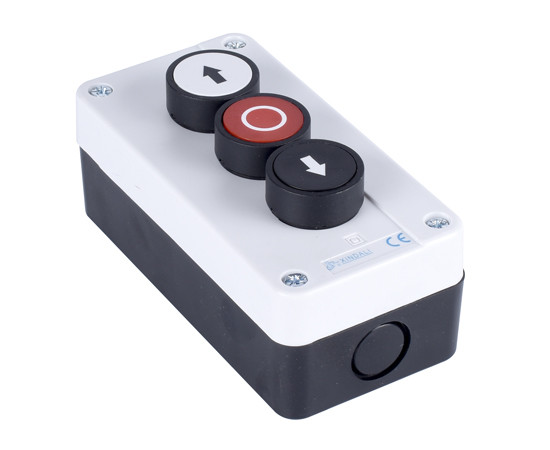

Control box; white (black arrow); + red (O); + black (white arrow); flush; round; spring return; N/O+N/C+N/O; IP54; three buttons; dimensions: 134x65.5x50.5+12mm

Parameters

Dimensions:	134x65.5x50.5+12mm
Button colour:	White/Red/Black
Contacts configuration:	N/O+N/C+N/O
Accessories type:	N/A
Illumination:	None
Button shape:	Round
Number of holes:	N/A

All parameters

Manufacturer:: XINDALI Manufacturer part number: XDL55-B334 RoHS Case style: Rys.LAY5-B324

In stock:

96 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	4,1658	3,5825	3,3534	3,2330	3,2046

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	134x65.5x50.5+12mm
Button colour:	White/Red/Black
Contacts configuration:	N/O+N/C+N/O
Accessories type:	N/A
Illumination:	None
Button shape:	Round
Number of holes:	N/A
IP rating:	IP54
Button type:	Covered
Number of buttons:	3
Manufacturer:	N/A
