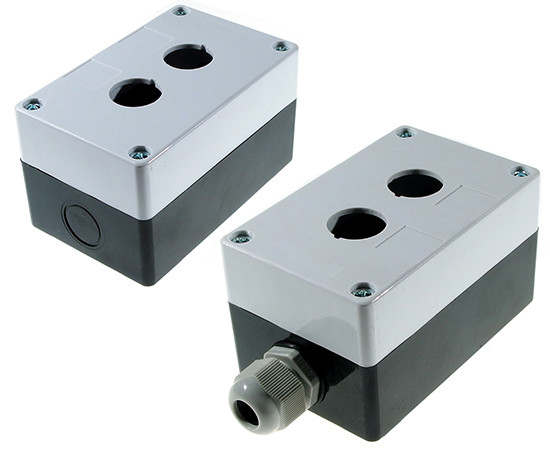

Button box; white-black

Symbol Micros: PRZ LAY5-BP02

216484

PRZ LAY5-BP02

Contractor Symbol:

Case : Rys.LAY5-BP02

Datasheet

Technical drawing Add to favourites

Button box; white-black; with cable gland; plastic; IP40; IP54; 2 holes; diameter: 22mm; current: 10A; dimensions: 116x72x60mm

Parameters

Dimensions:	116x72x60mm
Button colour:	N/A
Contacts configuration:	N/A
Accessories type:	Case
Diameter:	22mm
Illumination:	N/A
Button shape:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	116x72x60mm
Button colour:	N/A
Contacts configuration:	N/A
Accessories type:	Case
Diameter:	22mm
Illumination:	N/A
Button shape:	N/A
Number of holes:	2
IP rating:	IP40/54
Button type:	N/A
Number of buttons:	0
Manufacturer:	N/A
