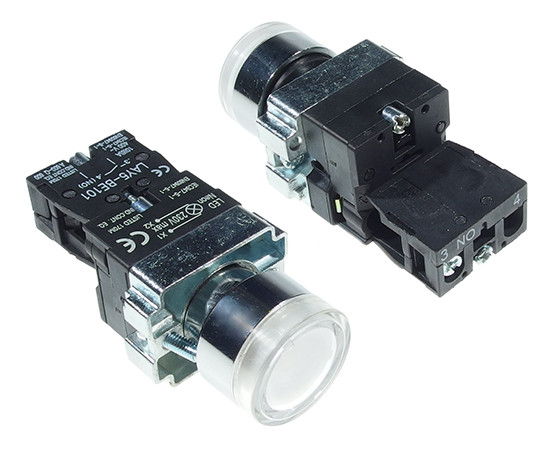

Indicator; white

Symbol Micros: PRZ LAY5-BW3171

216470

PRZ LAY5-BW3171

Contractor Symbol:

Case : Rys.LAY5-BW3171

Datasheet

Technical drawing Add to favourites

Indicator; white; round; bulb BA9S included with resistor; current: 10A; dimensions: 79x29mm

Parameters

Dimensions:	79x29mm
Button colour:	White
Contacts configuration:	N/O
Accessories type:	With diode and resistor
Diameter:	29mm
Illumination:	White
Button shape:	Round

All parameters

Manufacturer:: XINDALI Manufacturer part number: LAY5-BW3171 RoHS Case style: Rys.LAY5-BW3171

In stock:

1 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,5552	2,1065	1,9341	1,8444	1,8255

Add to comparison tool Add inquiry (RFQ)

Packaging:
1 Quantity (multiple: 1)

- +

Manufacturer:: XINDALI Manufacturer part number: LAY5-BW3171 RoHS Case style: Rys.LAY5-BW3171

In stock:

14 pcs.

Quantity of pcs.	1+	5+	20+	100+	200+
Net price (EUR)	2,5552	2,1065	1,9341	1,8444	1,8255

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	79x29mm
Button colour:	White
Contacts configuration:	N/O
Accessories type:	With diode and resistor
Diameter:	29mm
Illumination:	White
Button shape:	Round
Number of holes:	N/A
Button type:	Protruding
Number of buttons:	1
Manufacturer:	N/A
