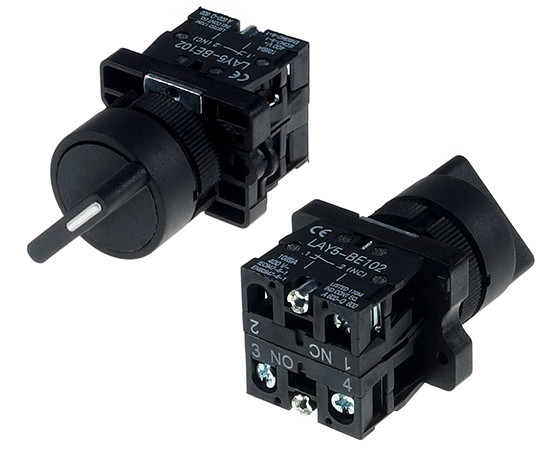

Handle selector switch; N/O+N/C

Symbol Micros: PRZ LAY5-ED45

216453

PRZ LAY5-ED45

Contractor Symbol:

Case : Rys.LAY5-ED45

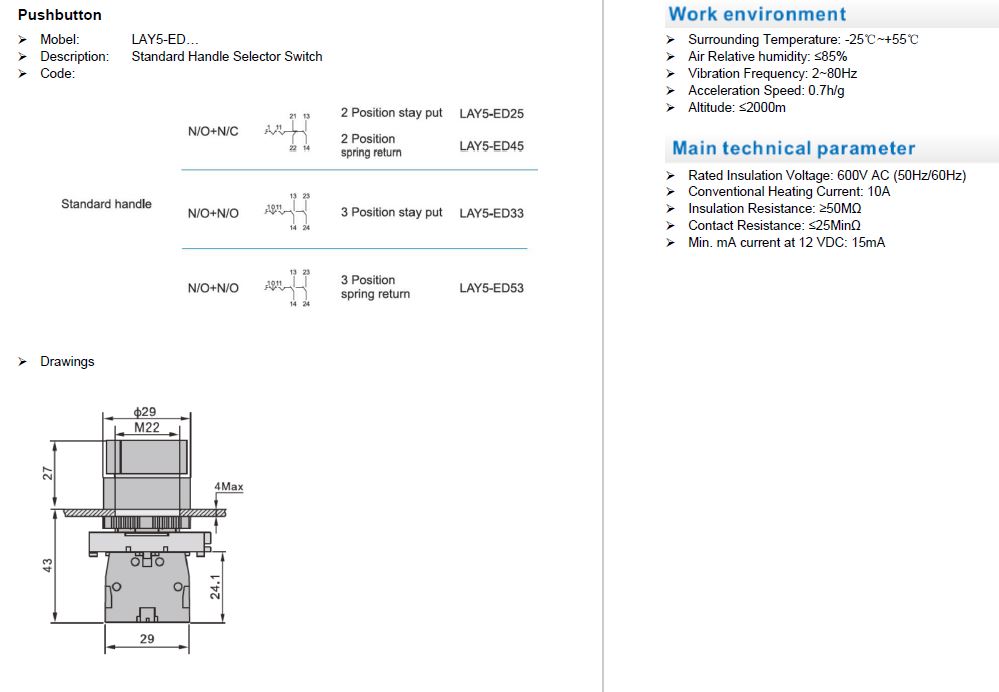

Datasheet

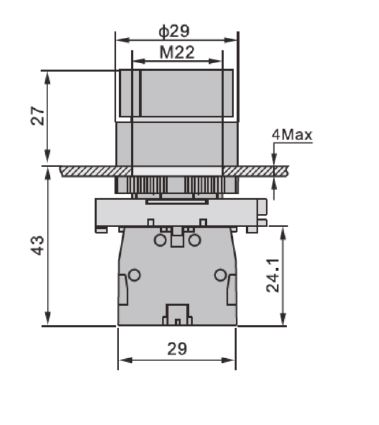

Technical drawing Add to favourites

Handle selector switch; black; 2 positions; flush; spring return; N/O+N/C; one button; current: 10A; dimensions: 70x29mm

Parameters

Dimensions:	70x29mm
Button colour:	Black
Contacts configuration:	N/O+N/C
Accessories type:	N/A
Diameter:	29mm
Illumination:	None
Button shape:	Feather

All parameters

Manufacturer:: XINDALI Manufacturer part number: LAY5-ED45 RoHS Case style: Rys.LAY5-ED45

In stock:

30 pcs.

Quantity of pcs.	1+	5+	20+	100+	300+
Net price (EUR)	1,7853	1,4169	1,2823	1,2115	1,1902

Add to comparison tool Add inquiry (RFQ)

Packaging:
20 Quantity (multiple: 1)

- +

• Parameters

Dimensions:	70x29mm
Button colour:	Black
Contacts configuration:	N/O+N/C
Accessories type:	N/A
Diameter:	29mm
Illumination:	None
Button shape:	Feather
Number of holes:	N/A
Button type:	Covered
Number of buttons:	1
Manufacturer:	N/A
