Control box; N/C

Symbol Micros: PRZ LAY5-JBPN1P

216114

PRZ LAY5-JBPN1P

Contractor Symbol:

Case : Rys.LAY5-JBPN1P

Datasheet

Technical drawing Add to favourites

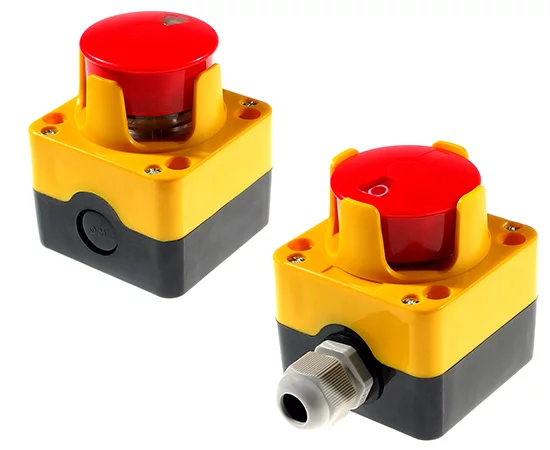

E-stop button: push-pull; red; without lamp; bistable; N/C; IP40; IP54; one button; current: 10A; dimensions: 75x75x56mm

Parameters

Dimensions:	75x75x56mm
Button colour:	Red
Contacts configuration:	N/C
Accessories type:	N/A
IP rating:	IP40/54
Illumination:	None
Button shape:	Mushroom-shaped

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Dimensions:	75x75x56mm
Button colour:	Red
Contacts configuration:	N/C
Accessories type:	N/A
IP rating:	IP40/54
Illumination:	None
Button shape:	Mushroom-shaped
Number of holes:	N/A
Button type:	Protruding
Number of buttons:	1
Manufacturer:	N/A
