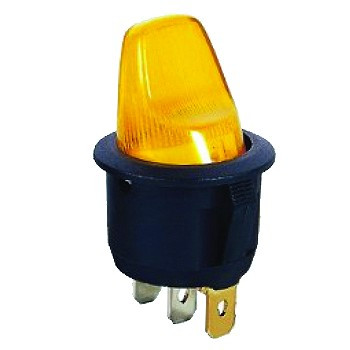

MIRS101-9hy; illuminated; rocker switch;

Symbol Micros: PRZ Mirs101-9hy

36974

PRZ Mirs101-9hy

Contractor Symbol:

Case : Rys.MIRS101-9hy

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker yellow illumination; housing colour: black; SPST; 3P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Yellow
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: MIRS101-9H Y RoHS Case style: Rys.MIRS101-9hy

In stock:

340 pcs.

Quantity of pcs.	3+	20+	100+	300+	1000+
Net price (EUR)	0,4495	0,2471	0,1951	0,1808	0,1732

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Yellow
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	SPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
