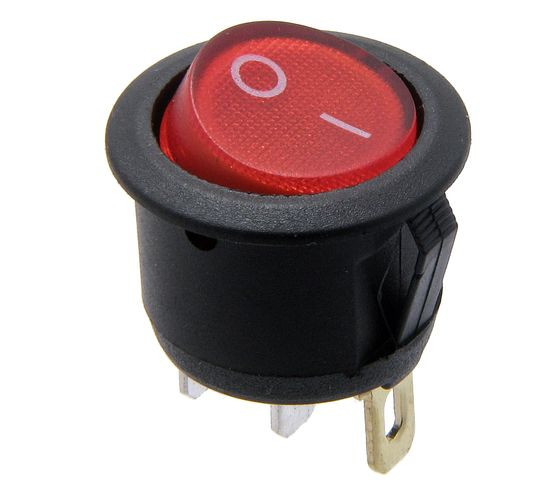

MIRS101-9r; illuminated; rocker switch;

Symbol Micros: PRZ Mirs101-9r

66749

PRZ Mirs101-9r

Contractor Symbol:

Case : Rys.MIRS101-9r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; housing colour: black; SPST; 3P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number: MIRS-101-9C3/R RoHS Case style: Rys.MIRS101-9r

In stock:

278 pcs.

Quantity of pcs.	2+	10+	40+	100+	500+
Net price (EUR)	0,6507	0,4085	0,3277	0,3040	0,2826

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/500 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	SPST
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Body colour:	Black
Accessories type:	N/A
Type of switch:	Button
