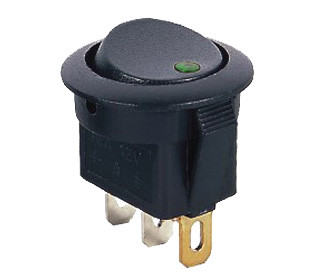

MIRS-101E-8C/D automotive switch

Symbol Micros: PRZ Mirs101E8cdg

51350

PRZ Mirs101E8cdg

Contractor Symbol:

Case : Rys.MIRS101E-8C/Dgr

Datasheet

Technical drawing Add to favourites

16A; 12VDC; ON-OFF; single pole; SPST; 3P; green lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Green
Contacts rating:	16A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Backlight colour:	Green
Contacts rating:	16A 12VDC
Key button colour:	Green
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
