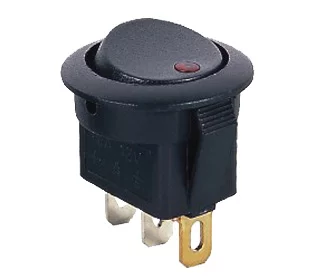

MIRS-101E-8C/D automotive switch

Symbol Micros: PRZ Mirs101E8cdr

51349

PRZ Mirs101E8cdr

Contractor Symbol:

Case : Rys.MIRS101E-8C/Dr

Datasheet

Technical drawing Add to favourites

16A; 12VDC; ON-OFF; single pole; SPST; 3P; red lamp; endurance: 10000 cycles; ambient temperature: -25°C+85°C

Parameters

Backlight colour:	Red
Contacts rating:	16A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C

All parameters

Manufacturer:: SWI Manufacturer part number:   Case style: Rys.MIRS101E-8C/Dr

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9405	0,6262	0,5176	0,4668	0,4483

Add to comparison tool Add inquiry (RFQ)

Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Backlight colour:	Red
Contacts rating:	16A 12VDC
Key button colour:	Red
Contacts configuration:	SPST
Switching method:	ON-OFF
Mechanical durability:	10000 cycles
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Automotive
