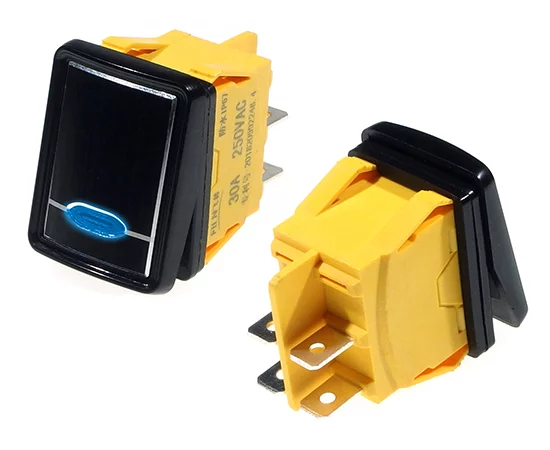

MIRS201-9bl/ss; rocker switch;

Symbol Micros: PRZ Mirs201-9bl/ss

231730

PRZ Mirs201-9bl/ss

Contractor Symbol:

Case : Rys.Mirs201-9bl/ss

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-OFF; silver actuator; blue illumination 230V; housing colour: yellow; DPST; 4P; 15A 250VAC; endurance: 20000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	15A 250VAC
Key button colour:	Steel
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Yellow
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	15A 250VAC
Key button colour:	Steel
Backlight colour:	Blue
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Yellow
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
