MIRS201-2C3; illuminated; rocker switch;

Symbol Micros: PRZ Mirs2012c3y

18885

PRZ Mirs2012c3y

Contractor Symbol:

Case : Rys.MIRS201-2C3y

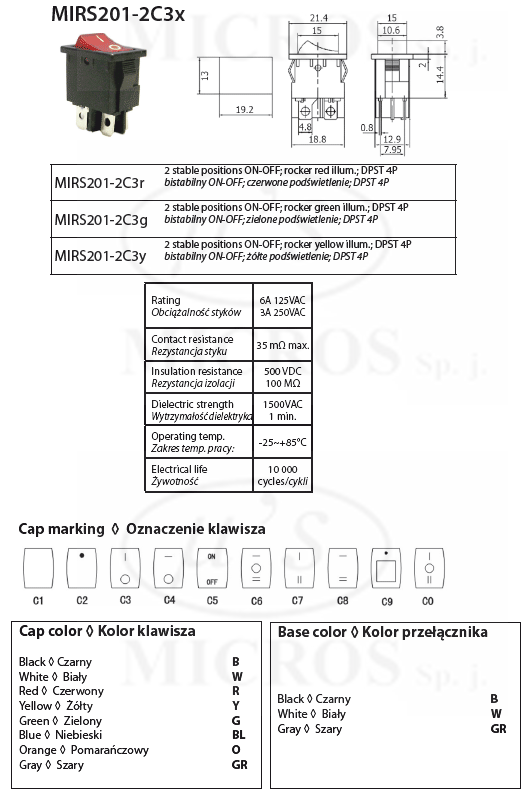

Datasheet

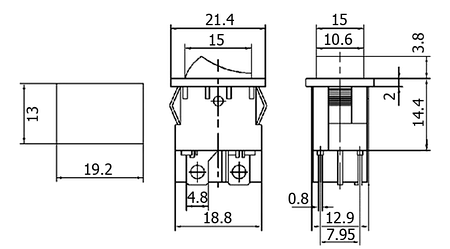

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker yellow illumination; DPST; 4P; 6A 125V or 3A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Yellow
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A

All parameters





Add inquiry (RFQ)

Item available on request

• Parameters

Contacts rating:	6A 125V 3A 250V
Key button colour:	Yellow
Backlight colour:	Yellow
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Accessories type:	N/A
Operating temperature (range):	-25°C ~ 85°C
Type of switch:	Button
