MIRS201A-C3r; illuminated; rocker switch;

Symbol Micros: PRZ Mirs201a-c3r

36977

PRZ Mirs201a-c3r

Contractor Symbol:

Case : Rys.MIRS201A-C3r

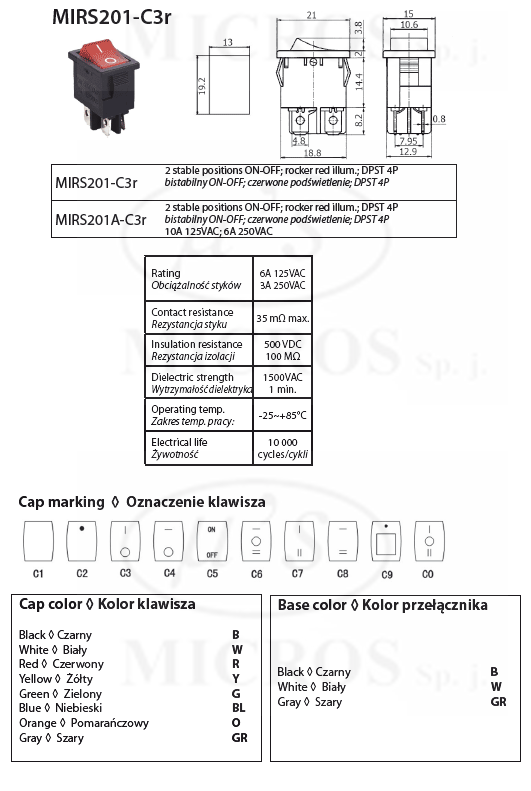

Datasheet

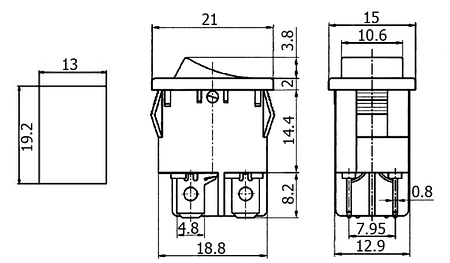

Technical drawing Add to favourites

2 stable positions; ON-OFF; rocker red illumination; housing colour: black; DPST; 4P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: MIRS201A-C3/R RoHS Case style: Rys.MIRS201A-C3r

In stock:

0 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	0,9681	0,6422	0,5312	0,4793	0,4604

Add to comparison tool Add inquiry (RFQ)

Packaging:
100/1000 Quantity (multiple: 1)

- +





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-30

Quantity of pcs.: 1000





Add inquiry (RFQ)

Item in delivery

Estimated date:
2026-01-30

Quantity of pcs.: 800

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-OFF
Contacts configuration:	DPST
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
