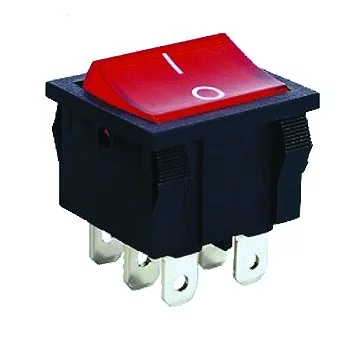

MIRS202-4C3r; illuminated; rocker switch;

Symbol Micros: PRZ Mirs202-4c3r

36980

PRZ Mirs202-4c3r

Contractor Symbol:

Case : Rys.MIRS202-4C3r

Datasheet

Technical drawing Add to favourites

2 stable positions; ON-ON; rocker red illumination; housing colour: black; DPDT; 6P; 10A 125V; 6A 250V; endurance: 10000 cycles; operating temperature: -25°C+85°C

Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A

All parameters

Manufacturer:: SWI Manufacturer part number: MIRS-202-4C3 R RoHS Case style: Rys.MIRS202-4C3r

In stock:

46 pcs.

Quantity of pcs.	1+	5+	20+	100+	500+
Net price (EUR)	1,0432	0,6931	0,5748	0,5180	0,4968

Add to comparison tool Add inquiry (RFQ)

Stock available
Until stock lasts Packaging:
100 Quantity (multiple: 1)

- +

• Parameters

Contacts rating:	10A 125V 6A 250V
Key button colour:	Red
Backlight colour:	Red
Switching method:	ON-ON
Contacts configuration:	DPDT
Body colour:	Black
Manufacturer:	N/A
Operating temperature (range):	-25°C ~ 85°C
Accessories type:	N/A
Type of switch:	Button
